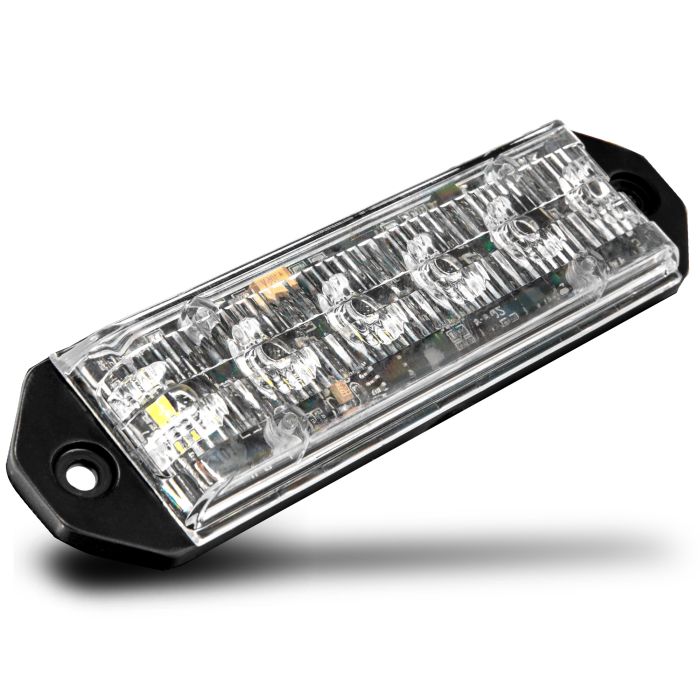

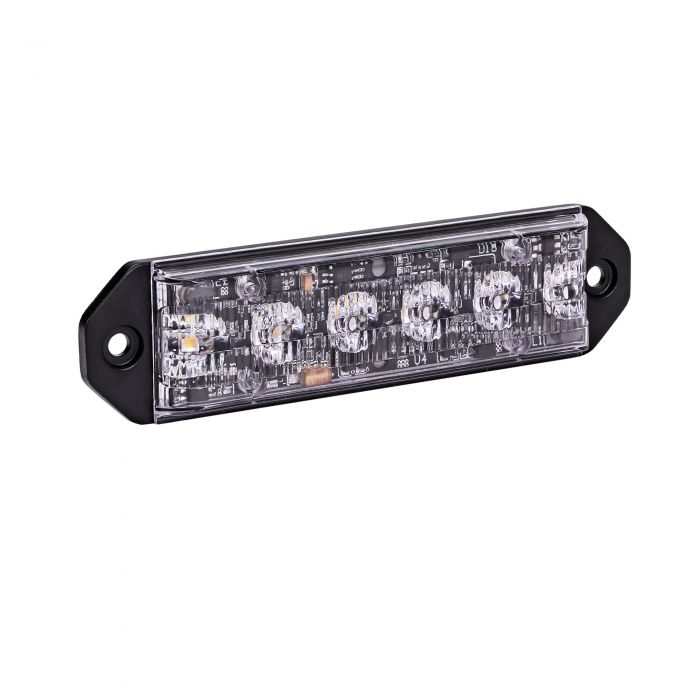

PlanarFlash 5-Inch 6W LED Strobe Light Head

Product Code: PSZLEDSTB0906-XX
by LAMPHUS
Rating:
100% of 100
As low as $26.99

Free Standard Shipping

In stock

Ships today if ordered in the next 54 minutes! please contact us for ETA

  • 6 Ultra-Bright LEDS
  • 72 Flash Patterns
  • Ultra-Flat Design Fits Into Recesses
  • Self-Contained Flasher
  • 180° Coverage
Read More

Free Shipping

2 Year Warranty

Details

Incredibly Slim With 180 Degrees Of Coverage
The 6 LED PlanarFlash comes in at an incredibly slim 4.75 by 1.25 x .5 inches, and its ultra-flat frame can be placed in recessed grooves in running boards, grilles, or even tailgates. Placement in recessed grooves allows your PFLH06 to be protected and continue functioning in the event of an impact.

Whether you are a volunteer firefighter or rescue patrolman, the PlanarFlash lets you be seen when duty calls. This light head comes with 180 degrees of visibility, so that incoming traffic and cars can see your ultra-bright LEDS even when mounted on your side door.

Superior Technology

Featuring 72 flash patterns, the PFLH06 is a self-contained unit with a built-in flasher and utilizes Memory Recall technology to stay on the last flash pattern it was set to before it was turned off.

Additionally, this warning light also uses TBT technology to allow it to seamlessly connect and interact with your turn signal, brake light, and taillight, so that when you turn or brake, the light head also signals turns and brakes with you.

Highly Rated

The PlanarFlash ultra flat light head comes with an SAE Class 1 Rating; indicating that the Society of Automotive Engineers has designated the PFLH06 as one of the brightest lights available for automotive vehicles and emergency service vehicles.

What's Included?

  • (1) 6W Light Head
  • (1) Pack of Screws
  • (1) Foam Protection Pad
  • (1) Instruction Manual

Packed with features:

  • 6 Ultra-Bright LEDS
  • 72 Flash Patterns
  • Ultra-Flat Design Fits Into Recesses
  • Self-Contained Flasher
  • 180° Coverage

Basic

Brand:
LAMPHUS
Model Name:
PlanarFlash
MPN:
PFLH06-AM

Warranty & Certification

Certifications:
SAE
IP Rating:
IP67
Warranty:
2 Year

Lighting

LED Manufacturer:
Tian-Dian
LED Type:
1W
Light Color:
Amber
LED Wattage:
6.00
Number of LEDs:
6.00
Flash Patterns:
72.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Clear
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
7.00
Housing Material:
Aluminum
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
4.75
Width (In):
0.63
Height (In):
1.38

Electrical

Amperage:
0.68
Operating Voltage:
10-30V DC
Power Output (Watt):
8.16
