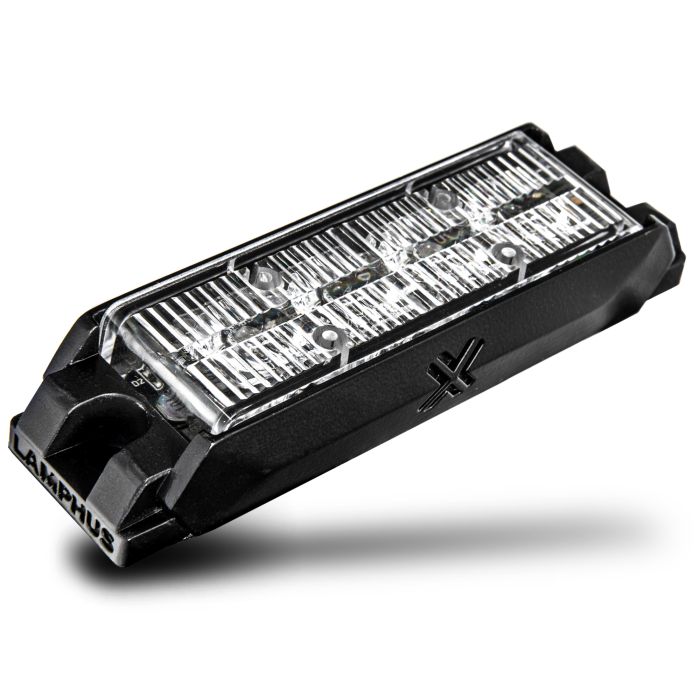

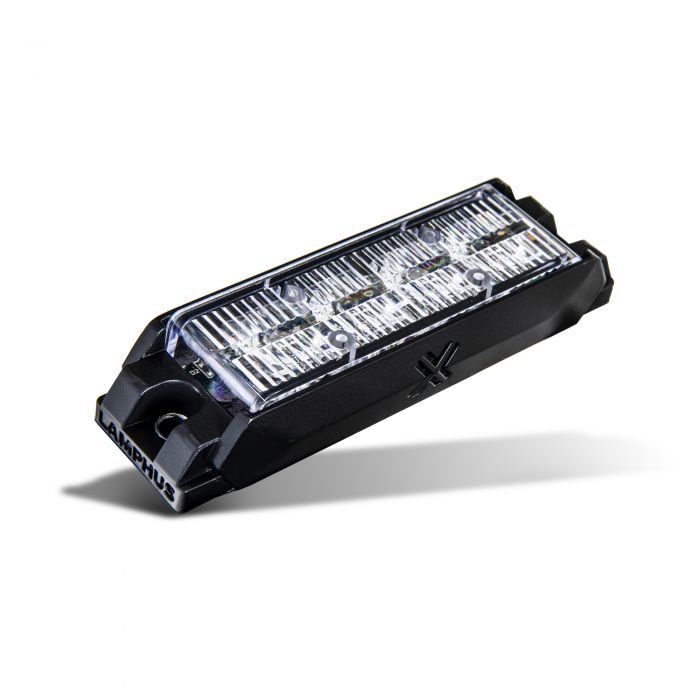

NanoFlare 4-Inch 4W LED Strobe Light Head

Product Code: PSZLEDSTB1804
by LAMPHUS
Rating:
100% of 100
As low as $19.99

In stock

Ships today if ordered in the next 1 hour and 29 minutes! Please contact us for ETA

Only %1 left
  • SAE J595 Class I Rated
  • 72 Unique Flash Patterns
  • Last Pattern Memory Recall
  • Multiple Unit Synchronization
  • TBT Function
  • IP67 Waterproof Rating
Read More

2 Year Warranty

Details

A Difference You Can See

Instead of using standard lenses, we chose to equip our light heads with innovative TIR lenses. Our TIR lenses are specifically designed to capture, focus, and fully utilize every ounce of immense power pumped out by the high-intensity LEDs. Not only does this give you a warning light that conforms to the class 1 standards set forth by the SAE, making the lights visible from thousands of feet away, but the lenses’ slim profile also makes these warning lights smaller and more versatile than their limited use counterparts.

Solid Foundation for the Future

The lens isn’t the only thing that sets this light head apart from the crowd. A reinforced aluminum body protects the light from impacts and vibration while the IP67 waterproof rating, integrated heatsink, and anti-condensation drain port, ensure that your lights will perform at their peak even after years of hard service.

Field-Tested Features

But these lights aren’t all brawn and no brains. Last pattern memory, 72 different flash patterns, and multi-light synchronization, make these self-contained units one of the most intelligent, feature-packed light heads available today. Our lights even have a TBT mode that will override the set strobe pattern and allow them to function as brake lights, reverse lights, and even turn signals.

What's Included?

  • (1) 4W Light Head
  • (1) Foam Protection Pad
  • (1) Pack of Screws

Packed with features:

  • SAE J595 Class I Rated
  • 72 Unique Flash Patterns
  • Last Pattern Memory Recall
  • Multiple Unit Synchronization
  • TBT Function
  • IP67 Waterproof Rating

Basic

Brand:
LAMPHUS
Model Name:
NanoFlare
MPN:
NFLH04-AM-Rev.1

Warranty & Certification

Certifications:
SAE
IP Rating:
IP67
Warranty:
2 Year

Lighting

LED Type:
1W
Light Color:
Amber
LED Wattage:
4.00
Number of LEDs:
4.00
Flash Patterns:
72.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Clear
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
7.00
Housing Material:
Aluminum
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
4.00
Width (In):
0.75
Height (In):
1.25

Electrical

Amperage:
0.45
Operating Voltage:
10-30V DC
Power Output (Watt):
5.40
