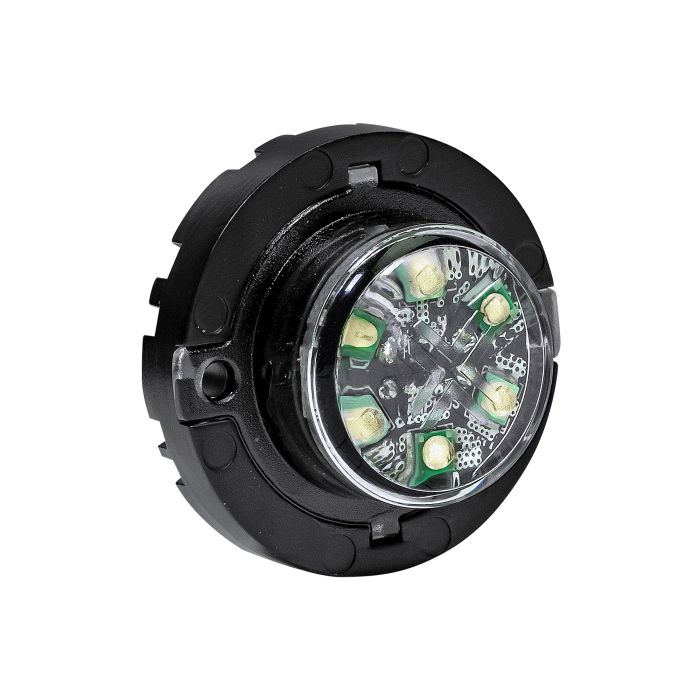

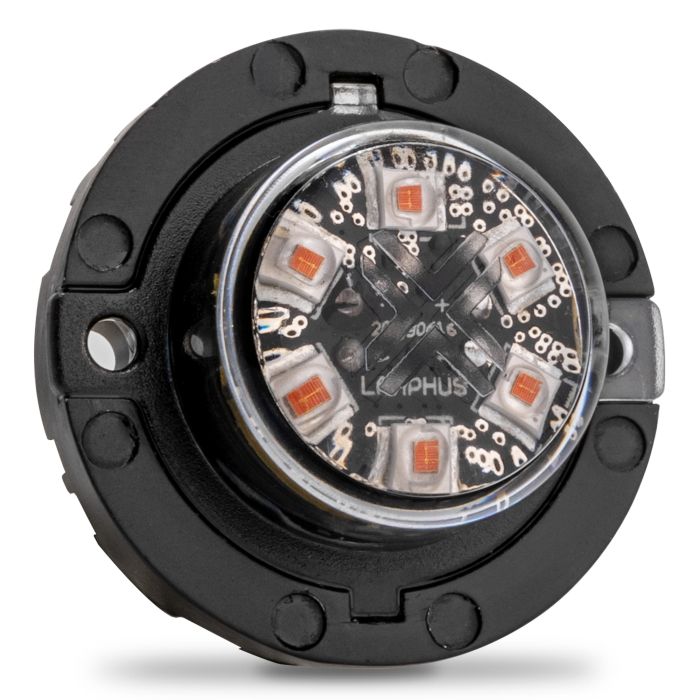

SnakeEye-III 6W LED Surface-Mount Hideaway Strobe

Product Code: PSZLEDSTB1506
by LAMPHUS

In stock

Ships tomorrow if ordered in the next 22 hours and 36 minutes! please contact us for ETA

  • SAE Class 3 Rated
  • Surface Mount
  • Optimized External Driver
  • IP67 Rated
  • Waterproof Connectors
  • 88” Reinforced Cable
  • 72 Flash Modes
  • Steady-Override Function
  • 3-Year Warranty
Read More

2 Year Warranty

Details

Built for the Job

Not everyone is built to run toward a problem, and not every light is built well enough to get you there safely. That’s why we constructed our SnakeEye series light heads to go above and beyond with strength you can depend on. Designed with an external driver to stabilize light output, reinforced cable, and an IP67 rating, these light heads always come out on top.

Designed to Keep You Safe

On the job, you trust that someone’s always got your back. You should be able to expect the same from your lights. With two distinct configurations, our SnakeEye light heads are in the perfect position to give you the coverage you need. Mounted to a bumper or grill the Surface Mount model provides unparalleled directional visibility.

Field-Tested Features

But these lights aren’t all brawn and no brains. Memory recall, up to 72 different flash patterns, multi-light synchronization, and a simplified install procedure make these some of the most intelligent, feature-packed hideaway lights available today. Our lights even have a Steady-Override function that will override the set strobe pattern and allow them to function as brake lights, reverse lights, and even turn signals.

What's Included?

  • (1) In-Line Driver
  • (1) Accessories Pack
  • (1) Double Sided Tape
  • (1) SnakeEye-III Hideaway Bulb

Packed with features:

  • SAE Class 3 Rated
  • Surface Mount
  • Optimized External Driver
  • IP67 Rated
  • Waterproof Connectors
  • 88” Reinforced Cable
  • 72 Flash Modes
  • Steady-Override Function
  • 3-Year Warranty

Basic

Brand:
LAMPHUS
Model Name:
SnakeEye-III
MPN:
SEHA306-SM-AM

Warranty & Certification

Certifications:
SAE
IP Rating:
IP67
Warranty:
2 Year

Lighting

LED Manufacturer:
Tian-Dian
LED Type:
1W
Light Color:
Amber
LED Wattage:
6.00
Number of LEDs:
6.00
Flash Patterns:
72.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Clear
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
94.00
Housing Material:
Aluminum
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
1.00
Width (In):
2.50
Height (In):
2.00

Electrical

Amperage:
0.23
Operating Voltage:
10-30V DC
Power Output (Watt):
2.76
