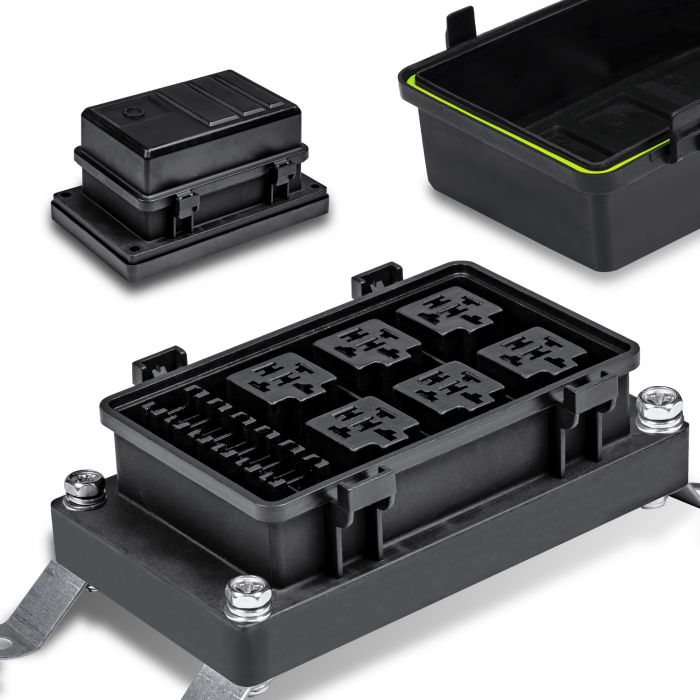

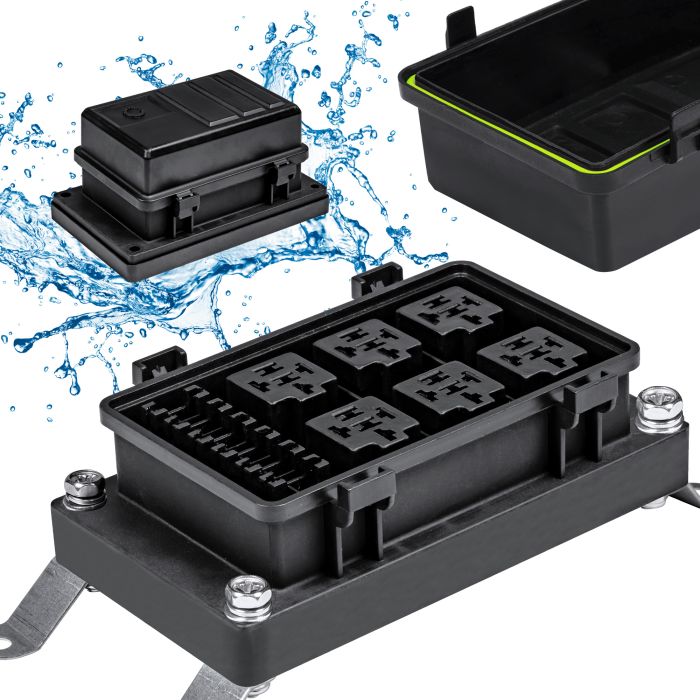

IP65 Waterproof Fuse Relay Box

Product Code: ACCEPSPWR0312
Price: $15.99 - $39.99

In stock

Ships Monday, April 29 if ordered in the next 2 days, 11 hours and 4 minutes! Please contact us for ETA

Only %1 left
  • Durable Nylon 66 Exterior Body
  • IP65 Waterproof Rating
  • 6 Circuit Capable
  • Waterproof Seals and Wiring Terminals Included
  • Versatile Bracket Mount Options
Read More

1 Year Warranty

Details

Making Your Adventures Possible

Your 100 miles into a multi-day off-road expedition, the sun is going down, and the last thing you want to worry about is whether or not your lights will turn on when you flip the switch. But if you’ve trusted your fuses and relays to a waterproof relay box from us, you know you have nothing to worry about. Made from the same durable, heat-resistant nylon 66 used in parachutes and engine components; and packed with enough silicone gaskets and seals to give it an IP65 waterproof rating, this relay box is fully prepared for any contingency.

Get Lost, Just Not in Your Wiring

Trying to organize harnesses, fuses, and relays can quickly have you driving in circles. Get your bearings with a dedicated, waterproof relay box. Like a trail map for your wiring, our relay box is the most efficient way to consolidate, organize, and keep track of all your aftermarket accessories. Boasting a six relay/fuse capacity, this relay box is more than capable of powering and protecting up to six independent circuits.

Tackle Anything

When it comes to installing and using your new relay box, we don't leave you hanging. Our unique 4 bracket system easily adjusts to fit any vehicle or situation, and with all the terminals and seals included in the kit, you're sure to get a reliable and waterproof connection every time.

What's Included?

  • (6) 12V DC 40/30A SPDT Bosch Style 5-Pin Relay
  • IP65 Waterproof 6-Slot ATC/ATO Fuse + 6-Slot 5-Pin Relay Box
  • Instruction Manual
  • Pack (14pc) of ATO Blade Fuse Wire Terminals
  • Pack (14pc) of Waterproof Fuse Rubber Plugs
  • Pack (35pc) of Relay Wire Terminals
  • Pack (4 sets) of Z Shape Brackets & Bolts/Nuts Sets
  • Pack (7pc) of Waterproof Relay Rubber Pads
  • Pack of UL approved ATO/ATC Blade Fuses
  • Rubber Gasket
  • Waterproof Silicon Ring
  • Wire Harness Replacement

Packed with features:

  • Durable Nylon 66 Construction
  • IP65 waterproof
  • Pre-wired Harness w/ 12AWG & 16AWG Wires
  • Includes 6 Bosch Style relays
  • Includes 10 Fuses (10A x 4, 20A x 4, 25A x 2, 30A x 2)

Basic

Model Name:
Does Not Apply
MPN:
ACCEPSPWR0312-XX

Warranty & Certification

Certifications:
Does Not Apply;Does Not Apply
Certification Detail:
Does Not Apply
IP Rating:
IP65
Warranty:
1 Year

Hardware & Install

Mounting Type:
Bracket-Mount
Mounting Hardware:
Fasteners
Housing Material:
Nylon
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
6.25
Width (In):
3.63
Height (In):
6.38

Mechanical

Terminal Material:
Does Not Apply
Pole Type:
Single
Throw Type:
Does Not Apply
Release Time:
5msec max
Terminal Type:
Does Not Apply
NO/NC:
NC

Electrical

Input Terminal Type:
Does Not Apply
Input Terminal Size:
Does Not Apply
Output Terminal Type:
Does Not Apply
Output Terminal Size:
Does Not Apply
Max Switching DC Voltage:
12V DC
Max Switching Current:
40A
Max Switching Power:
480.00
Dielectric Strength:
AC 1500V 1 minute
Electrical Life:
100,000 operations
Trigger Coil Current:
Does Not Apply
Coil Resistance:
Does Not Apply
Continuous Duty:
Yes
Has Flyback Diode?:
No
Has Resistor?:
No
