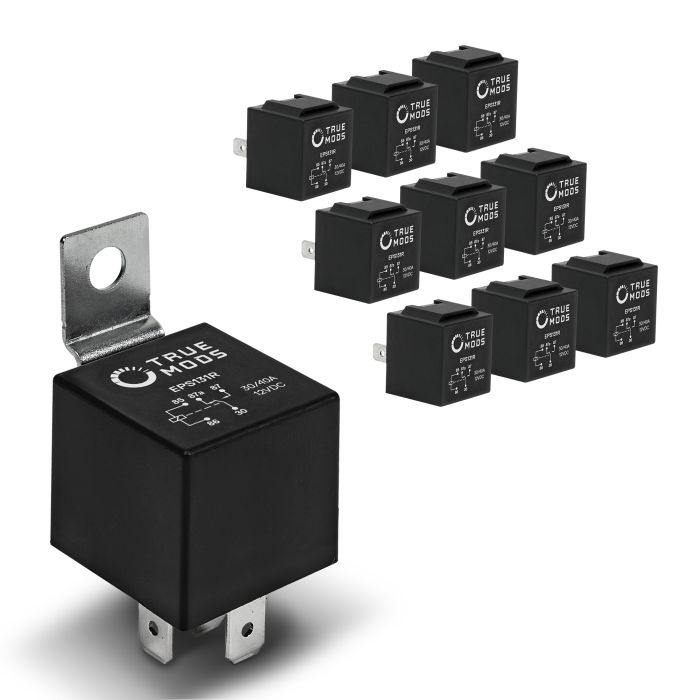

10pc 12V DC 40/30A SPDT 5-Pin Relays

Product Code: PSZACCEPS176R

Free Standard Shipping

In stock

Ships Tuesday, May 30 if ordered in the next 2 days and 29 minutes! Please contact us for ETA

  • Bosch style 5-Pin SPDT Relay
  • 40A/30A High Switching Capability
  • Pin Spec: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87)
  • Read More

    Free Shipping

    1 Year Warranty

    Details

    A pack of ten Bosch style 5 pin SPDT 12V, 30/40 Amp electrical relay. This relay has a universal application and can be used in automotive setups, car sound systems, security systems, and various other applications. Comes with mounting tab for easy installation.

    What's Included?

    • (1) Mounting Plate
    • (10) 5-Pin 40/30A Relay
    • (1) Instruction Manual

    Packed with features:

    • Bosch style 5-Pin SPDT Relay
    • 40A/30A High Switching Capability
    • Pin Spec: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87)

    Basic

    MPN:
    EPS176R

    Warranty & Certification

    Warranty:
    1 Year

    Hardware & Install

    Mounting Type:
    Bracket-Mount
    Mounting Hardware:
    Fasteners
    Housing Material:
    Plastic
    Operating Temperature:
    -40°C ~ +85°C
    Is Waterproof?:
    No

    Package & Dimension

    Length (In):
    1.63
    Width (In):
    1.13
    Height (In):
    1.25

    Mechanical

    Terminal Material:
    Silver Plated Copper
    Number of Prongs:
    4.00
    Pole Type:
    Single
    Throw Type:
    Double
    Release Time:
    5msec max
    Terminal Type:
    .250" Quick Disconnect

    Electrical

    Max Switching DC Voltage:
    12V DC
    Max Switching Power:
    480.00
    Dielectric Strength:
    AC 1500V 1 minute
    Trigger Coil Current:
    1.50
    Coil Resistance:
    80.00
    Has Flyback Diode?:
    No
    Has Resistor?:
    No
