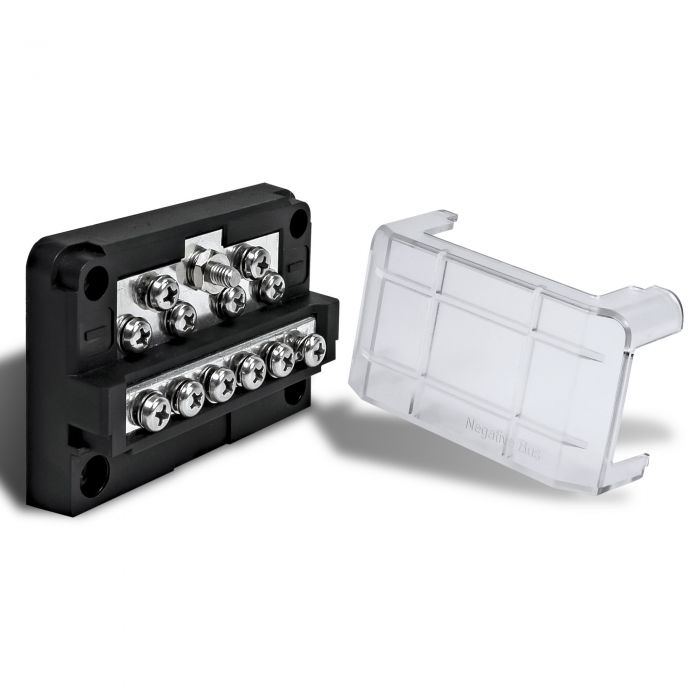

12-Way Modular Ground Terminal Block

Product Code: ACCEPSPWR0032

Free Standard Shipping

Out of stock

Ships tomorrow if ordered in the next 20 hours and 13 minutes! Please contact us for ETA

  • Tin-plated Copper Bus Bar
  • 12 Ground Terminals
  • 100A 32V Max Capacity
  • Modular Design for Use with ACCEPSPWR0031 Fuse Box
Read More

Free Shipping

1 Year Warranty

Details

Your Car Needs One

Every electrical component in your vehicle needs a ground connection. Without a solid ground, lights flicker, electric motors run slow, and frustration runs high. But with vehicle manufacturers using more plastics and aluminum, a good ground is becoming increasingly difficult to locate. Avoid the searching and headache with a dedicated ground bus bar. Our bus bar provides a convenient central location for all of your accessory ground wires and guarantees a clean, uninterrupted path back to the battery ground stud.

Raising the Bar

Whether it's lighting a trail or providing a soundtrack for your adventures, wiring makes the good times happen. And no matter where those good times take you, our bus bar is ready. Perfect for cleaning up the wiring on your car, truck, or boat, our universal bus bar comes with 12 grounding locations, a tin-plated copper bar for improved conductivity and corrosion resistance, and a 100A rating to keep all your accessories going without interruption.

More is Better

Our ground bus bar is more than happy to work alone, but just in case you need a bit more functionality we also designed our bus bar to play well with others. The modular design easily mates with up to two ACCEPSPWR0031 6-Way 100A M4 fuse boxes giving you up to 12 fuse protected terminals and 12 ground studs. Need more lights? No problem.

What's Included?

  • (1) Ground Terminal Block
  • (1) Ground Terminal Block Cover
  • (1) Pack of Screws
  • (1) Instruction Manual

Packed with features:

  • Tin-plated Copper Bus Bar
  • 12 Ground Terminals
  • 100A 32V Max Capacity
  • Modular Design for Use with ACCEPSPWR0031 Fuse Box

Basic

MPN:
PWR0032

Warranty & Certification

IP Rating:
IP21
Warranty:
1 Year

Hardware & Install

Mounting Hardware:
Fasteners
Housing Material:
PBT
Operating Temperature:
-25°C~+85°C
Is Waterproof?:
No

Package & Dimension

Length (In):
3.38
Width (In):
1.63
Height (In):
2.25

Mechanical

Number of Prongs:
1.00
Terminal Type:
Screw Terminals

Electrical

Max DC Voltage Rating:
32V DC
Max DC Amperage Rating Per Circuit:
100.00

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.

File Description

PIM-00000103-V002.pdf

PIM-00000108-V002.pdf
