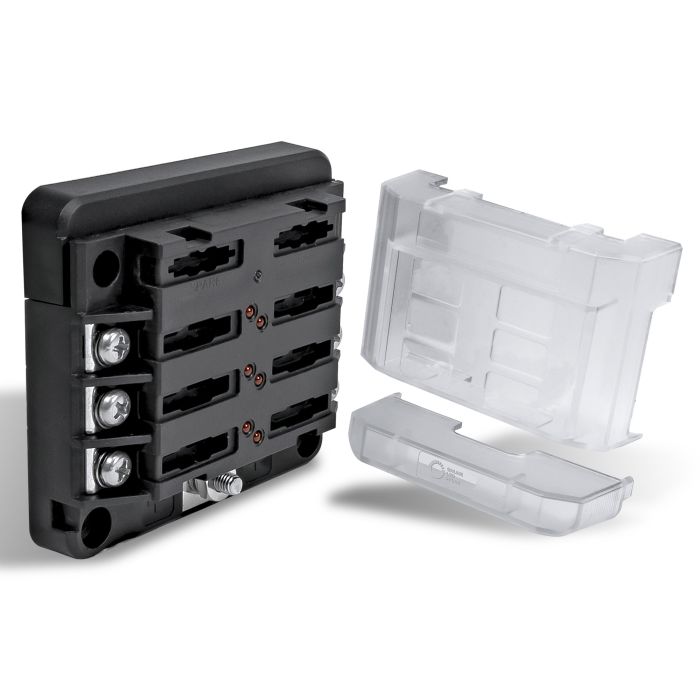

6-Way 100A Modular Fuse Box

Product Code: ACCEPSPWR0031

Free Standard Shipping

In stock

Ships tomorrow if ordered in the next 21 hours and 51 minutes! Please contact us for ETA

  • Modular Design for Future Expansion
  • Blown Fuse LED Indicator
  • 6 Fused Circuits w/ 30A Max
  • Total Panel Max 100A
  • Clear Protective Cover
Read More

Free Shipping

1 Year Warranty

Details

The Right Way to Wire

There's always a right way and a wrong way to do something. Going off by yourself in a horror movie, wrong. Using an additional fuse block when adding accessories to your vehicle, right. A dedicated fuse box allows you to add new circuits without compromising your stock wiring or creating a jumbled rat's nest of wires and fuses. And even though they can't protect you from the serial killer waiting in the back shed, your fuse box will keep your accessories and your vehicle safe if something goes wrong in your wiring.

Simple and Safe

But which fuse box is right for your setup? While we do admit we're a bit partial, it would be hard to go wrong with this 6-way fuse box from us. Rated at 30 amps per circuit and 100 amps total, this box is more than capable of handling even the most extensive wiring projects. And with blown fuse indicator lights problems are easy to track down and diagnose.

More Is Better

Our fuse block is more than happy to work alone, but just in case you need a bit more functionality we also designed it to play well with others. The modular design easily mates with a second 6-way fuse box, a 12-way M4 ground terminal block, or both, giving you up to 12 fuse protected terminals and 12 ground studs. Need more lights? No problem.

What's Included?

  • (1) Fuse Box
  • (1) Input Section Cover
  • (1) Fuse Section Cover
  • (1) Plastic Base
  • (1) Pack of Fasteners
  • (1) Pack of Label Sctickers
  • (1) Positive Stud Set
  • (1) Instruction Manual

Packed with features:

  • Modular Design for Future Expansion
  • Blown Fuse LED Indicator
  • 6 Fused Circuits w/ 30A Max
  • Total Panel Max 100A
  • Clear Protective Cover

Basic

MPN:
PWR0031

Warranty & Certification

IP Rating:
IP21
Warranty:
1 Year

Hardware & Install

Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Housing Material:
PBT
Operating Temperature:
-20°C~+85°C
Rec. Wire Size:
#10 - 16 AWG
Is Waterproof?:
No

Package & Dimension

Length (In):
3.38
Width (In):
1.63
Height (In):
3.13

Mechanical

Fuse Type:
Standard (ATC/ATO)
Cover Material:
PC
Number of Positive Circuits:
6.00
Positive Bus Size:
M5 x 0.8P
Positive Terminal Type:
Screws
Number of Negative Terminals:
0.00
Has Cover?:
Yes
Has Indicator Light?:
Yes

Electrical

Max DC Voltage Rating:
32V DC
Max DC Amperage Rating:
30.00
Max DC Amperage Rating Per Circuit:
100.00
Has Negative Bus?:
No

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.

File Description

PIM-00000103-V002.pdf

PIM-00000108-V002.pdf
