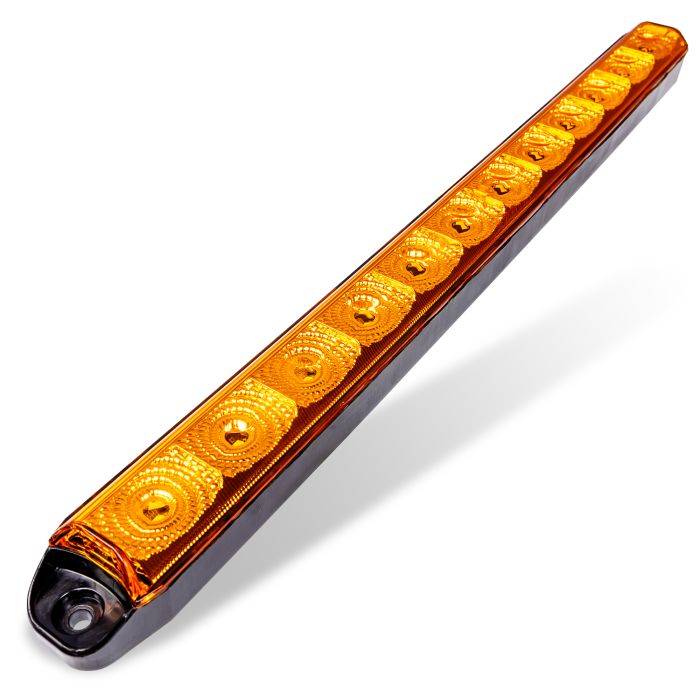

16-Inch 12-LED Trailer Identification Light Bar w/ TBT Function - Amber
Product Code: CAZLEDSIL1521-AM
Price: $19.99
In stock
Ships tomorrow if ordered in the next 14 hours and 21 minutes! Please contact us for ETA
- DOT FMVSS-108 Approved
- SAE I6P2 Rated
- Sequential Turn Signals
- IP67 Waterproof (Submersible)
- Color-Coded Wiring Harness
Details
Safety Through Visibility
Looking to improve your trailer’s safety and visibility by adding a few more lights? Excellent idea. Equipped with left and right sequential turn signals, a center out hazard light, 50% intensity running lights, and a 100% intensity, solid-on mode, these lights are the most effective way to make sure you’re seen and safe.
The Right Way to Build
Not every trailer light is built to last through the rainy season or survive a trip to the lake, but ours are. Our lights are IP67 rated and fully submersible, built with sealed metal fasteners, and feature a corrosion-resistant ABS housing and shatterproof acrylic lens. Why so much attention to detail? Because upgrading to LED lights shouldn’t be a downgrade.
All-Around Coverage
Put them where you want them, our lights are designed to be installed anywhere on your trailer or vehicle. Install them at the front or back as supporting running lights and turn signals; or mount them to the sides as solid turn signals or amber side marker lights. With their simple mounting method and straightforward wiring harness, installing your lights exactly where you need them has never been easier.
What's Included?
- (1) 16" Amber Light Bar
- (1) Pack of Screws
- (1) Instruction Manual
Packed with features:
- DOT FMVSS-108 Approved
- SAE I6P2 Rated
- Sequential Turn Signals
- IP67 Waterproof (Submersible)
- Color-Coded Wiring Harness
Basic
MPN:
SIL1521-AM
Warranty & Certification
Certification Detail:
SAE I6P2 DOT FMVSS 108
IP Rating:
IP67
Warranty:
1 Year
Lighting
LED Type:
3528 SMD
Light Color:
Amber
LED Wattage:
6.00
Number of LEDs:
12.00
Hardware & Install
Connector Type:
Pigtail
Lens Cover Color:
Amber
Lens Cover Material:
Acrylic
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
17.00
Housing Material:
ABS
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes
Package & Dimension
Length (In):
15.88
Width (In):
1.13
Height (In):
1.38
Electrical
Amperage:
1.00
Operating Voltage:
12-13.5VDC
Power Output (Watt):
12.00
