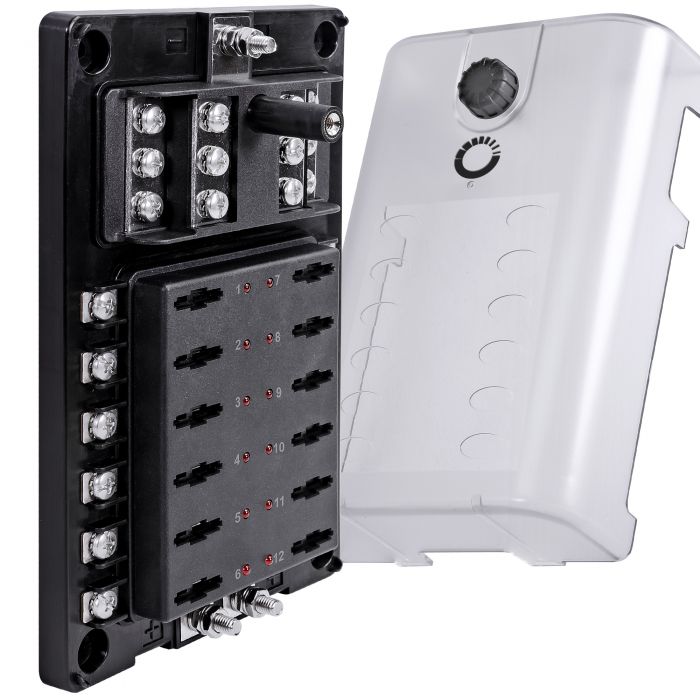

12-Way 200A Dual-Input Fuse Box w/ Ground Terminal Block

Product Code: PSZACCEPS056H

Free Standard Shipping

Out of stock

Ships tomorrow if ordered in the next 18 hours and 1 minutes! Please contact us for ETA

  • Dual Positive Power Input Studs
  • 1” fuse space clearance compatible w/ E-T-A Thermal Circuit Breakers
  • Blown Fuse LED Indicator
  • 12-Way Built-In Ground Busbar
  • 12-Way Outputs
  • Maximum of 30 Amp/Circuit; 200 Amp/Panel (100Amp Each Side)
  • Protective Cover Design
Read More

Free Shipping

1 Year Warranty

Details

The Ideal 12-Circuit Blade Fuse Block For Vehicular And Marine Dc Electrical Systems

This fuse box consolidates branch circuits so you don’t have to fuss over the messy tangled wiring associated with in-line fuses. Storing up to 12 ATC/ATO/ATF blade fuses up to 30A max per circuit, this blade fuse box is perfect for automotive, marine, outdoor and home applications.

Negative Ground Connections & Dual Positive Power Connections

Our fuse block has negative ground connections (1x ground input and 12x ground outputs) for superior functionality. Additionally, dual positive power connections achieve a high maximum operating amperage of 200A.

Designed To Deliver Maximum Safety & Security For ATC/ATO/ATF Blade Fuses

Its clever design features a thumbscrew affixed to the cover to prevent being misplaced, stainless steel screws for corrosion protection, recessed mounting holes to prevent shorts, comes with labeling stickers, and a 1” fuse placement clearance for compatibility with E-T-A Thermal Circuit Breakers.

What's Included?

  • (1) Fuse Box
  • (1) Oval Sticker Sheet
  • (1) Instruction Manual

Packed with features:

  • Dual Positive Power Input Studs
  • 1” fuse space clearance compatible w/ E-T-A Thermal Circuit Breakers
  • Blown Fuse LED Indicator
  • 12-Way Built-In Ground Busbar
  • 12-Way Outputs
  • Maximum of 30 Amp/Circuit; 200 Amp/Panel (100Amp Each Side)
  • Protective Cover Design

Basic

MPN:
EPS056H

Warranty & Certification

IP Rating:
IP00
Warranty:
1 Year

Hardware & Install

Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Operating Temperature:
-20°C~+85°C
Rec. Wire Size:
#10 - 16 AWG
Is Waterproof?:
No

Package & Dimension

Length (In):
2.50
Width (In):
4.63
Height (In):
7.13

Mechanical

Fuse Type:
Standard (ATC/ATO)
Terminal Material:
Tinned Copper
Cover Material:
PC
Number of Positive Circuits:
12.00
Positive Bus Size:
M5 x 0.8P
Positive Terminal Type:
Screws
Positive Terminal Size:
M5
Negative Bus Size:
M5 x 0.8P
Number of Negative Terminals:
12.00
Has Cover?:
Yes
Has Indicator Light?:
Yes

Electrical

Max DC Voltage Rating:
32V DC
Max DC Amperage Rating:
30.00
Max DC Amperage Rating Per Circuit:
200.00
Has Negative Bus?:
Yes
