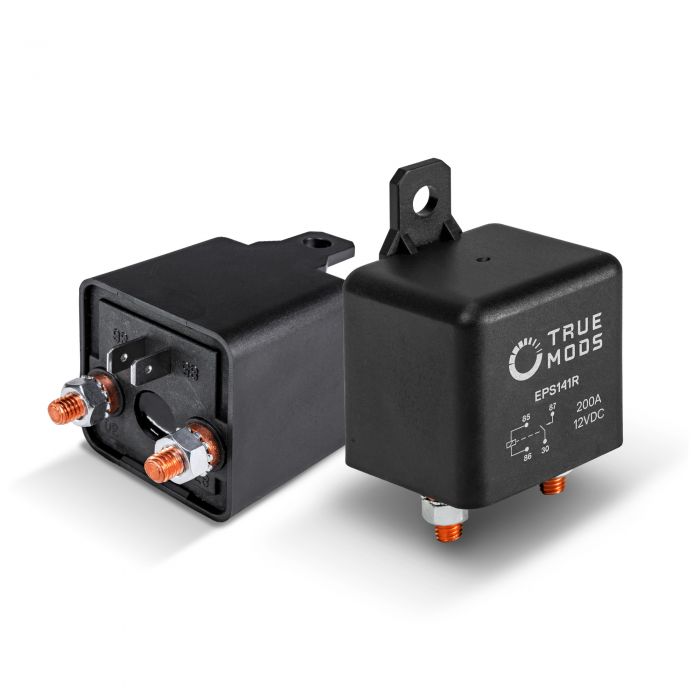

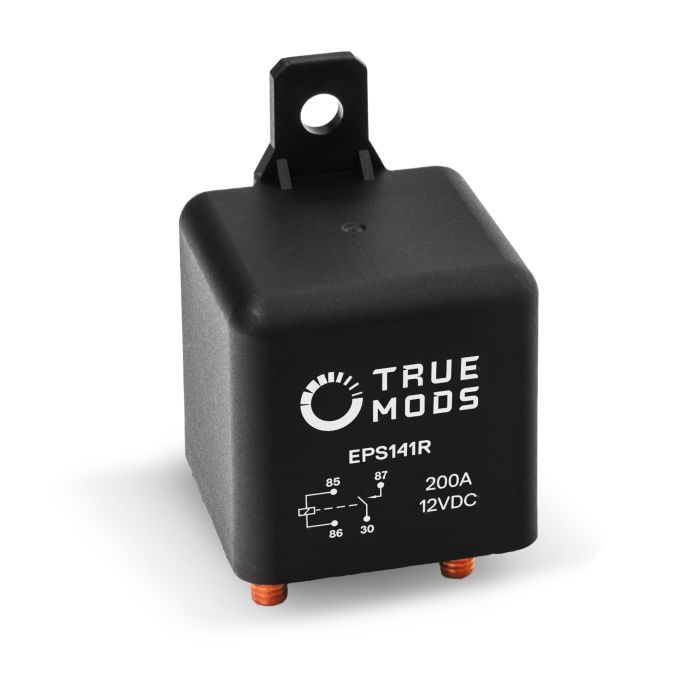

14V DC 200A SPST 4-Pin Split-Charge Relay

Product Code: PSZACCEPS141R

Free Standard Shipping

In stock

Ships tomorrow if ordered in the next 7 hours and 3 minutes! Please contact us for ETA

  • Heavy Duty 4-Pin SPST Relay
  • 200A High Current Carrying Capacity
  • Normally Open with 60 Ohms Coil Resistance
  • 1/4" Studs for Power Input and Output

Read More

Free Shipping

1 Year Warranty

Details

PSZACCEPS141R SPST 14V DC 200 Amp Heavy Duty Relay is universal in application, suitable to be used in both automotive and marine settings. This 4 pin relay has a high current carrying capacity of 200 amperages of load at 14 volts DC, making it the perfect component to be used in a split charging setup.

What's Included?

  • (1) Split Charge Relay Switch

Packed with features:

  • Heavy Duty 4-Pin SPST Relay
  • 200A High Current Carrying Capacity
  • Normally Open with 60 Ohms Coil Resistance
  • 1/4" Studs for Power Input and Output

Basic

MPN:
EPS141R

Warranty & Certification

Warranty:
1 Year

Hardware & Install

Mounting Type:
Bracket-Mount
Mounting Hardware:
Fasteners
Housing Material:
Plastic
Operating Temperature:
-40°C ~ +85°C
Is Waterproof?:
No

Package & Dimension

Length (In):
1.75
Width (In):
1.88
Height (In):
2.88

Mechanical

Terminal Material:
Silver Plated Copper
Number of Prongs:
4.00
Pole Type:
Single
Throw Type:
Single
Release Time:
5msec max
Terminal Type:
.250" Quick Disconnect
NO/NC:
NO

Electrical

Max Switching DC Voltage:
12V DC
Max Switching Power:
2,400.00
Dielectric Strength:
AC 1500V 1 minute
Trigger Coil Current:
1.00
Coil Resistance:
60.00
Has Flyback Diode?:
No
Has Resistor?:
No
