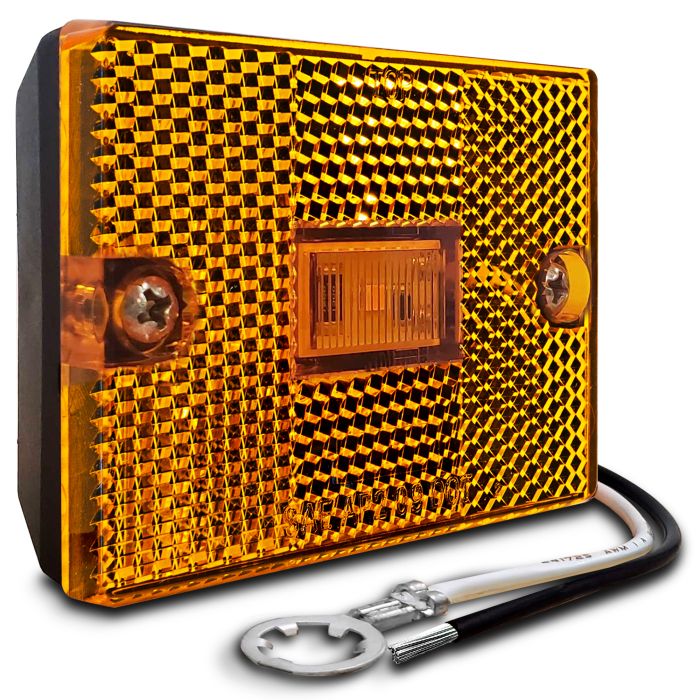

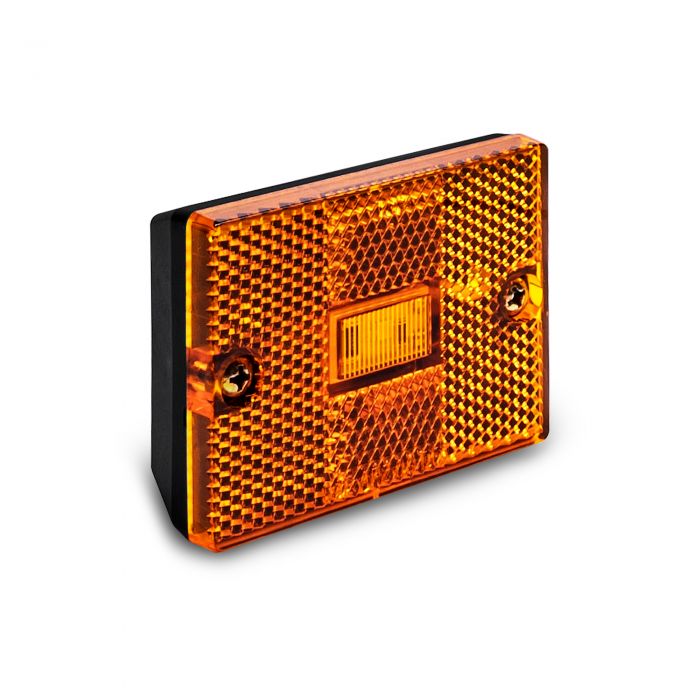

3x2-Inch Stud-Mount Amber LED Marker Light - DOT FMCSS 108 - SAE AP2

Product Code: CAZLEDSIL3001-AM

In stock

Ships tomorrow if ordered in the next 6 hours and 47 minutes! Please contact us for ETA

  • DOT FMVSS-108 Approved
  • SAE AP2 Rated
  • IP67 Waterproof (Submersible)
  • Reflector Lens Design
  • Stud Mount installation
Read More

1 Year Warranty

Details

Give Your Trailer What It Deserves

Trailers are how we work and how we play. And for those who hauls, there are just too many things to do before a long drive to waste time worrying about your trailer’s clearance lights. But if you're using short-lived incandescent bulbs, you could be making a trip to the parts store to fix your lights before you can hit the road. With a long-lasting set of LED clearance lights, you’ll spend less time maintaining and more time doing what you love.

We Don’t Settle for Second Best

Not all clearance lights are created equal. Our lights feature fully sealed electronics, sport the impressive IP67 waterproof rating needed for boat and jet ski trailers, have a notched back for easier wire routing, and come with drain holes to reduce condensation and moisture buildup. Can your clearance lights do that?

More Than Just an LED Light

More than just practical and long-lasting, our lights are also legal. According to the FMVSS-108, all trailers over 80” wide must use clearance lights and reflective materials in order to legally operate on the road. Our lights combine the features and benefits of an LED side marker with a highly visible reflective lens so you can quickly and easily satisfy both requirements with one piece of equipment.

What's Included?

  • (1) 3" x 2" Clearance Marker Light

Packed with features:

  • DOT FMVSS-108 Approved
  • SAE AP2 Rated
  • IP67 Waterproof (Submersible)
  • Reflector Lens Design
  • Stud Mount installation

Basic

Fitment Group:
3" x 2" Rectangular
MPN:
SIL3001-AM

Warranty & Certification

IP Rating:
IP67
Warranty:
1 Year

Lighting

LED Type:
3528 SMD
Light Color:
Amber
LED Wattage:
1.00
Number of LEDs:
1.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Amber
Lens Cover Material:
Acrylic
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
4.00
Housing Material:
ABS
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
4.00
Width (In):
2.50
Height (In):
2.00

Electrical

Amperage:
0.07
Operating Voltage:
12V DC
Power Output (Watt):
0.84
