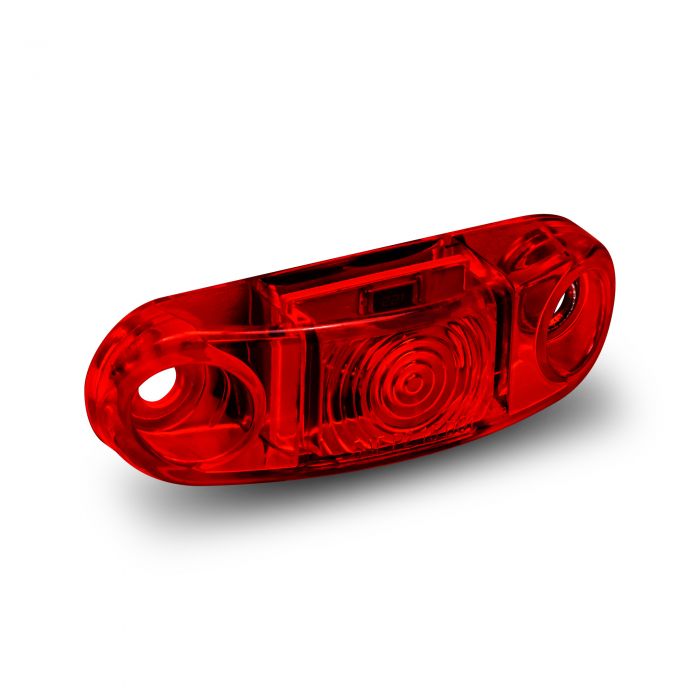

2.5-Inch Oval Surface-Mount Red LED Marker Light - DOT FMVSS 108 - SAE P2

Product Code: CAZLEDSIL2563-RD

In stock

Ships tomorrow if ordered in the next 17 hours and 36 minutes! Please contact us for ETA

Only %1 left
  • DOT FMVSS-108 Approved
  • SAE P2 Rated
  • IP67 Waterproof (Submersible)
  • Surface Mount installation
  • 2.5" with 2" Mounting Centers
Read More

1 Year Warranty

Details

Manage the Budget

Managing parts inventories, repair bills, and down time to stay on budget can be a challenging task. One easy way to reduce the time spent is by installing a set of long-lasting, maintenance-free LED clearance lights. And we’ve made sure that our lights are completely sealed and IP67 submersion rated so they will keep on working even in the worst conditions.

Streamline the Operation

Do the benefits offset the cost? One way to balance that equation is by reducing the time spent installing your new LED clearance lights. Their compact 2.5" size with 2" mounting centers means that you don't have to worry about fitment, and because of the surface mount design you don’t have to mess with grommets, hole saws, or complicated install procedures.

Keep It Legal

Finding a clearance light that meets your needs goes beyond just ease of use and longevity, the light must also meet DOT regulations regarding build quality, durability, and visibility. Lights that meet these requirements will be better, brighter, and last longer than other, weaker lights. Our lights either meet or exceed the requirements set out in DOT FMVSS-108 and are the ideal, safety-first choice for your trailer or vehicle.

What's Included?

  • (1) Oval Clearance Marker Light
  • (1) Pack of Fasteners

Packed with features:

  • DOT FMVSS-108 Approved
  • SAE P2 Rated
  • IP67 Waterproof (Submersible)
  • Surface Mount installation
  • 2.5" with 2" Mounting Centers

Basic

Fitment Group:
2.5" Oval
MPN:
SIL2563-RD

Warranty & Certification

IP Rating:
IP67
Warranty:
1 Year

Lighting

LED Type:
3528 SMD
Light Color:
Warm White
LED Wattage:
0.10
Number of LEDs:
1.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Red
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
5.75
Housing Material:
Polycarbonate (PC)
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
2.38
Width (In):
0.75
Height (In):
1.00

Electrical

Amperage:
0.04
Operating Voltage:
12V DC
Power Output (Watt):
0.48
