6pc 12V DC 40/30A SPDT 5-Pin Relay w/ Wire Harnes Kit
Product Code: PSZACCEPS175R
Price: $11.99
Free Standard Shipping
In stock
Ships tomorrow if ordered in the next 6 hours and 49 minutes! Please contact us for ETA
- Bosch Style 5-Pin SPDT Relays
- 40A/30A High Switching Capability
- Interlocking Relay Socket Harness Base
- 6" Pigtail Harnesses Included
- Wire Spec: Black - Ground (85), Red - VDC (30), White - Trigger (86), Yellow - Output N/C (87a), Blue - Output N/O (87)
Details

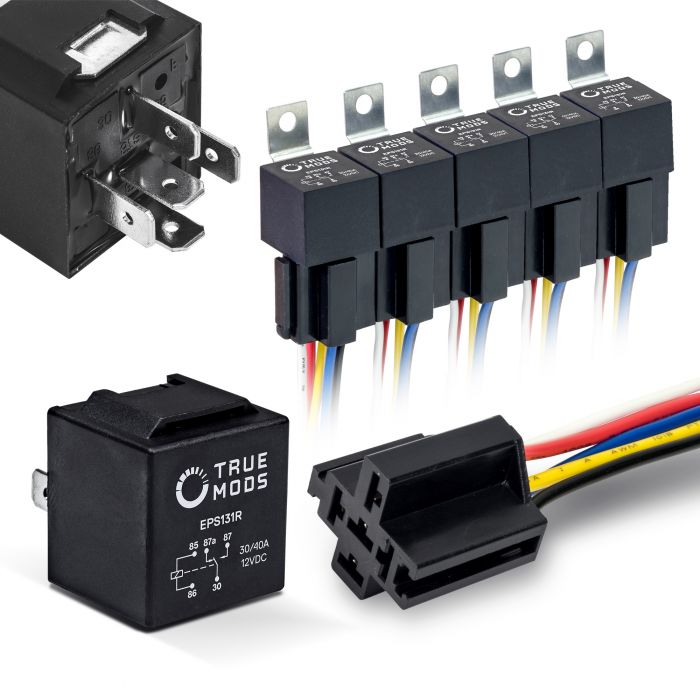

A pack of six Bosch style 5 pin SPDT 12V, 40/30 Amp electrical relay with pre-wired relay socket harness. This relay has a universal application and can be used in automotive setups, car sound systems, security systems, and various other applications. Relay comes with mounting tab for easy installation. The interlocking design on the harness allows multiple harnesses to be coupled together for organization and ease of setup.
What's Included?
- (6) 5-Pin Relay Socket Harness Base
- (6) 5-Pin 40/30A Relay
- (1) Mounting Plate
- (1) Instruction Manual
Packed with features:
- Bosch Style 5-Pin SPDT Relays
- 40A/30A High Switching Capability
- Interlocking Relay Socket Harness Base
- 6" Pigtail Harnesses Included
- Wire Spec: Black - Ground (85), Red - VDC (30), White - Trigger (86), Yellow - Output N/C (87a), Blue - Output N/O (87)
Basic
MPN:
EPS175R
Warranty & Certification
Warranty:
1 Year
Hardware & Install
Mounting Type:
Bracket-Mount
Mounting Hardware:
Fasteners
Housing Material:
Plastic
Operating Temperature:
-40°C ~ +85°C
Is Waterproof?:
No
Package & Dimension
Length (In):
1.63
Width (In):
1.13
Height (In):
1.25
Mechanical
Terminal Material:
Silver Plated Copper
Number of Prongs:
4.00
Pole Type:
Single
Throw Type:
Double
Release Time:
5msec max
Terminal Type:
.250" Quick Disconnect
Electrical
Max Switching DC Voltage:
12V DC
Max Switching Power:
480.00
Dielectric Strength:
AC 1500V 1 minute
Trigger Coil Current:
1.50
Coil Resistance:
80.00
Has Flyback Diode?:
No
Has Resistor?:
No
Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.
File Description
PIM-00000098-V002.pdf
