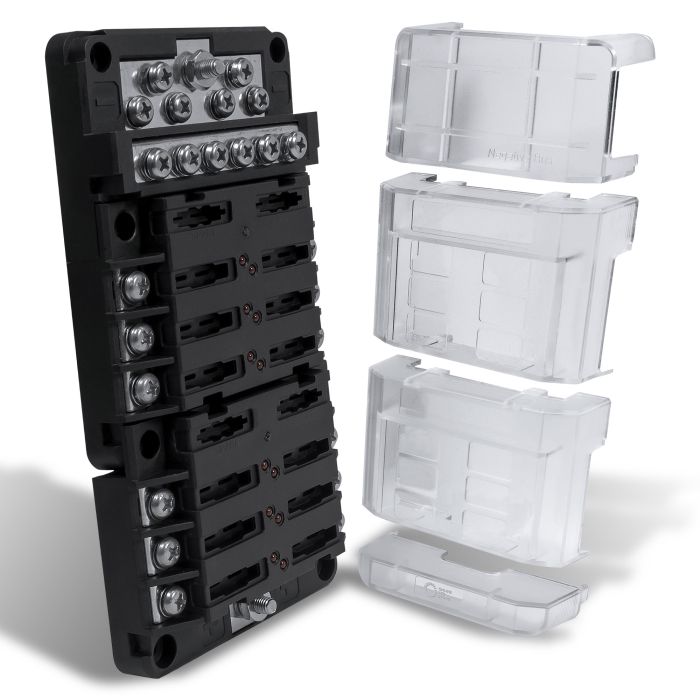

12-Way 100A Modular Fuse Box w/ 12-Way Ground Terminal Block - PWR0031 + PWR0032

Product Code: ACCEPSPWR0034

Free Standard Shipping

In stock

Ships Monday, April 29 if ordered in the next 2 days, 22 hours and 33 minutes! Please contact us for ETA

  • Modular Design for Future Expansion
  • Blown Fuse LED Indicator
  • 12-Way Built-In Ground Busbar
  • 12 Fused Circuits w/ 30A Max
  • Total Panel Max 100A
  • Clear Protective Cover
Read More

Free Shipping

1 Year Warranty

Details

The Right Way to Wire

There's always a right way and a wrong way to do something. Going off by yourself in a horror movie, wrong. Using an additional fuse block when adding accessories to your vehicle, right. Our kit allows you to supply power and ground to your new accessories without compromising your stock wiring or creating a jumbled rat's nest of wires and fuses. And even though it can't protect you from the serial killer waiting in the back shed, your fuse/ground unit will keep your accessories and your vehicle safe if something goes wrong in your wiring.

Built for Those Who Build Their Own Adventures

Whether it's lighting a trail or providing the soundtrack for your adventures, wiring makes the good times happen. And no matter where those good times take you, our fuse/ground unit is ready. Perfect for cleaning up the wiring on your car, truck, or boat, our kit comes with 12 grounding locations, tin-plated copper components for improved conductivity and corrosion resistance, and 12 fuse protected terminals for up to 100 amps of power.

We’ve Got Your Back

We designed our fuse box to handle anything, even a trip back to us in a return box. So you can drive with confidence knowing that your fuse box is covered by a two-year warranty and one of the best customer service in the business.

What's Included?

(2) 6-Way 100A M4 Modular LED Indicator ATC/ATO Blade Fuse Box

  • (1) Fuse Box
  • (1) Input Section Cover
  • (1) Fuse Section Cover
  • (1) Plastic Base
  • (1) Pack of Fasteners
  • (1) Pack of Label Sctickers
  • (1) Positive Stud Set
  • (1) Instruction Manual

(1) 12-Way M4 Modular Ground Terminal Block

  • (1) Ground Terminal Block
  • (1) Ground Terminal Block Cover
  • (1) Pack of Screws
  • (1) Instruction Manual

Packed with features:

  • Modular Design for Future Expansion
  • Blown Fuse LED Indicator
  • 12-Way Built-In Ground Busbar
  • 12 Fused Circuits w/ 30A Max
  • Total Panel Max 100A
  • Clear Protective Cover

Basic

MPN:
PWR0034

Warranty & Certification

IP Rating:
IP21
Warranty:
1 Year

Hardware & Install

Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Housing Material:
PBT
Operating Temperature:
-20°C~+85°C
Rec. Wire Size:
#10 - 16 AWG
Is Waterproof?:
No

Package & Dimension

Length (In):
3.75
Width (In):
1.63
Height (In):
6.75

Mechanical

Fuse Type:
Standard (ATC/ATO)
Cover Material:
PC
Number of Positive Circuits:
12.00
Positive Bus Size:
M5 x 0.8P
Positive Terminal Type:
Screws
Negative Bus Size:
M5 x 0.8P
Number of Negative Terminals:
12.00
Has Cover?:
Yes
Has Indicator Light?:
Yes

Electrical

Max DC Voltage Rating:
32V DC
Max DC Amperage Rating:
30.00
Max DC Amperage Rating Per Circuit:
100.00
Has Negative Bus?:
Yes
