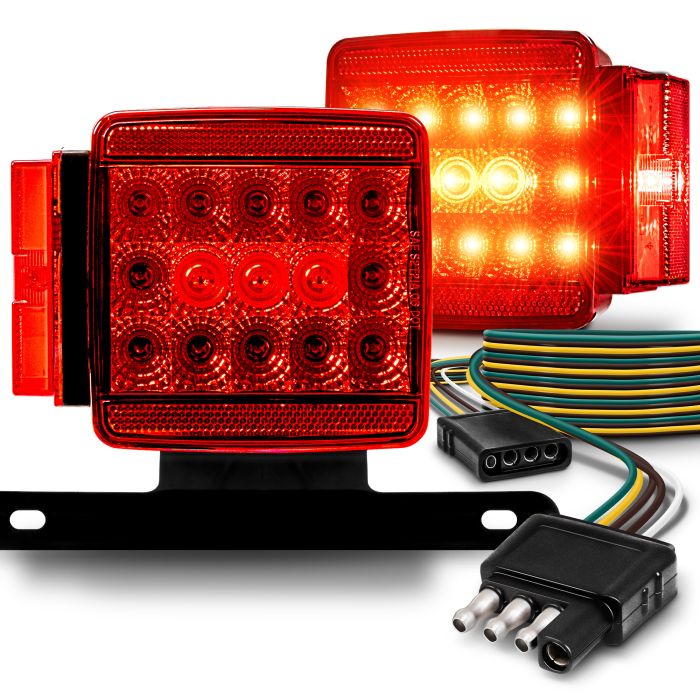

Premium LED Trailer Tail Light Kit for All Size Trailers

Product Code: CAZLEDTBL1651
Price: $34.99 - $39.99

In stock

Ships tomorrow if ordered in the next 8 hours and 49 minutes! Please contact us for ETA

Only %1 left
  • DOT FMVSS-108 Approved
  • SAE AIS2T2/APC Rated
  • IP67 Waterproof (Submersible)
  • License Plate & TBT Function
  • 4-Pin Trailer Plug-N-Play
  • For Trailers Less Than 80" Wide
Read More

1 Year Warranty

Details

Easy to see, easy to be legal, and even easy to install. That’s right, our light kit takes the guesswork out of your tail light install. We include all of the wiring, clips, splice connectors, ring terminals, and nuts that you will need to install your lights. We even designed our lights with a side wire exit on the back of the light so you can adjust the configuration to fit your needs.

What's Included?

  • (1) Driver Side Light Unit
  • (1) Passenger Side Light Unit
  • (1) Accessories Pack
  • (1) License Plate Mounting Bracket
  • (1) Wishbone Style Trailer Harness
  • (1) Instruction Manual

Packed with features:

  • Turn/Brake/Tail Lights
  • Rear Side Marker Light
  • Rear and Side Reflectors
  • Internal Chrome Reflector
  • Center Diffused Lens
  • IP67 Waterproof
  • 20’ Wire Harness, 16" Ground Wire
  • Wishbone Style Harness
  • 4 Pin Trailer Plug
  • For Trailers Less Than 80” Wide

Basic

MPN:
TBL1651

Warranty & Certification

Certification Detail:
SAE (2)R DOT FMVSS-108
IP Rating:
IP67
Warranty:
1 Year

Lighting

LED Type:
Superflux Piranha
LED Wattage:
34.00
Number of LEDs:
34.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Red
Lens Cover Material:
Acrylic
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
6.50
Housing Material:
ABS
Operating Temperature:
-30°C~50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
5.50
Width (In):
3.00
Height (In):
4.50

Electrical

Amperage:
0.81
Operating Voltage:
12V DC
Power Output (Watt):
9.72

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.

File Description

PIM-00000117-V002.pdf

PIM-00000119-V002.pdf
