12V DC 120A SPST 4-Pin Split-Charge Relay

Name: 12V DC 120A SPST 4-Pin Split-Charge Relay
Brand: ONLINE LED STORE
SKU: PSZACCEPS140R
Price: 4.99 USD
Availability: InStock

Product Code: PSZACCEPS140R

Be the first to review this product

Price: $4.99

Free Standard Shipping

In stock

Ships Tuesday, May 30 if ordered in the next 1 day, 23 hours and 46 minutes! Please contact us for ETA

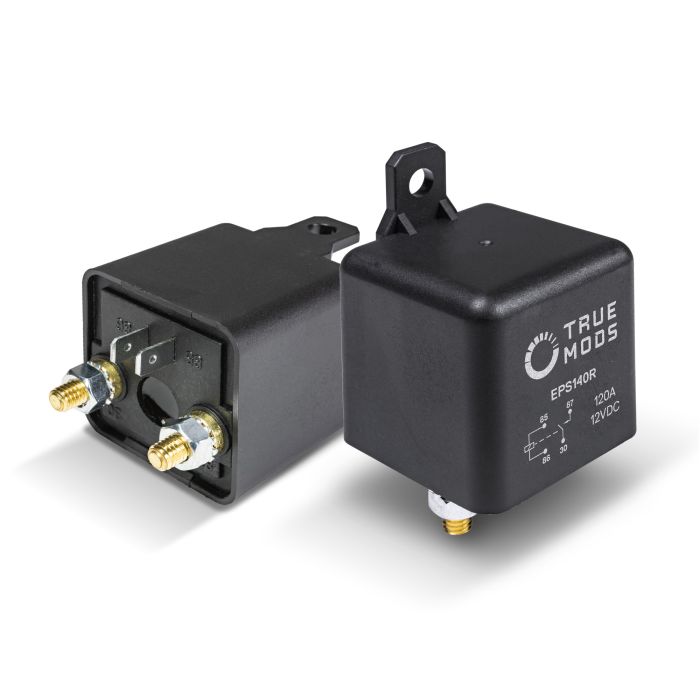

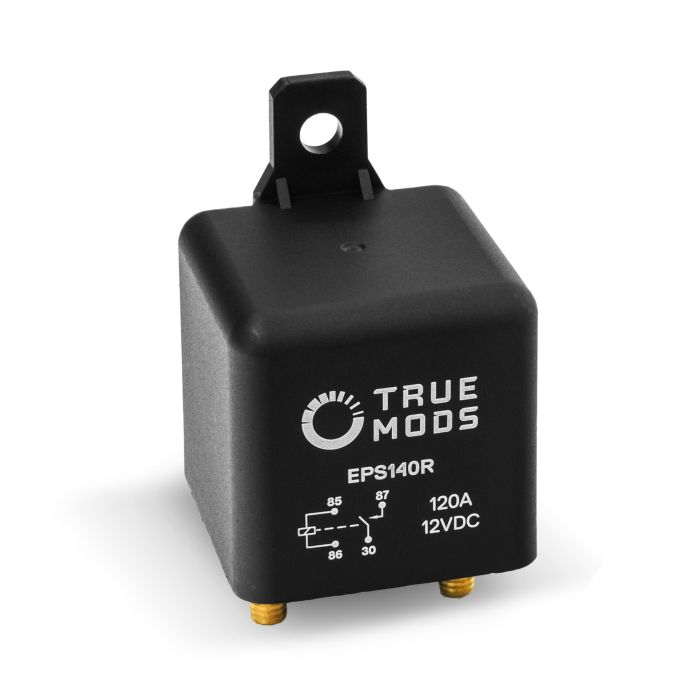

Heavy Duty 4-Pin SPST Relay
120A High Current Carrying Capacity
Normally Open with 60 Ohms Coil Resistance
1/4" Studs for Power Input and Output

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Free Shipping

1 Year Warranty

Description

Details

PSZACCEPS140R SPST 14V DC 120 Amp Heavy Duty Relay is the perfect equipment to be used in split charging two batteries in automotive and marine applications. This electrical relay has 4 pins present on it and is rated for up to 120 amperages of load at 14 volts DC, making this automotive relay suitable for almost all automobile applications.

What's Included?

(1) 4-Pin SPST Relay

Packed with features:

Heavy Duty 4-Pin SPST Relay
120A High Current Carrying Capacity
Normally Open with 60 Ohms Coil Resistance
1/4" Studs for Power Input and Output

Details & Specs

Basic

MPN:

EPS140R

Warranty & Certification

Warranty:

1 Year

Hardware & Install

Mounting Type:

Bracket-Mount

Mounting Hardware:

Fasteners

Housing Material:

Plastic

Operating Temperature:

-40°C ~ +85°C

Is Waterproof?:

Package & Dimension

Length (In):

1.75

Width (In):

1.88

Height (In):

2.88

Mechanical

Terminal Material:

Silver Plated Copper

Number of Prongs:

4.00

Pole Type:

Single

Throw Type:

Single

Release Time:

5msec max

Terminal Type:

.250" Quick Disconnect

NO/NC:

Electrical

Max Switching DC Voltage:

12V DC

Max Switching Power:

1,440.00

Dielectric Strength:

AC 1500V 1 minute

Trigger Coil Current:

1.00

Coil Resistance:

60.00

Has Flyback Diode?:

Has Resistor?:
