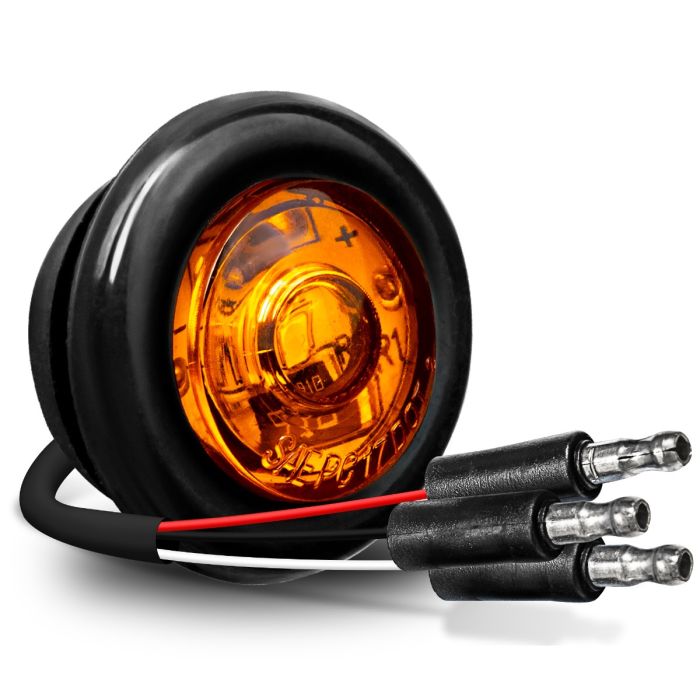

3/4-Inch Round Grommet-Mount LED Marker Light w/ TBT Function - DOT FMVSS 108 - SAE P2PC

Product Code: CAZLEDSIL1013-Parent

In stock

Ships tomorrow if ordered in the next 21 hours and 22 minutes! please contact us for ETA

  • DOT FMVSS-108 Approved
  • SAE P2 PC Rated
  • TBT Function
  • IP67 Waterproof (Submersible)
  • Built-In Bullet Connector
  • Grommet Mount installation
Read More

1 Year Warranty

Details

More Options

Looking for a multi-function marker light to improve the look, visibility, and safety of your truck or trailer? Our 3/4", three-wire, LED marker lights are equipped with two different brightness levels to suit a wider range of applications. Available in amber or red for the front or rear of your vehicle, these lights can be used as marker lights, clearance lights, or running lights. They can even be installed as supplemental turn signals or brake lights.

Two for One

Our PC-rated lights allow you to reduce the total number of lights on your vehicle, and fewer lights mean lower costs and fewer repairs. When installed on the front or rear corners, 45 degrees from the centerline of a truck or trailer, these amber clearance light are visible from the front, back, and sides of the vehicle. This eliminates the need for both a clearance light and a front side marker light on each corner.

Legal Is Better

Finding a clearance light that meets your needs goes beyond just sizing and longevity, the light must also meet DOT regulations regarding build quality, durability, and visibility. Lights that meet these requirements will be better, brighter, and provide a higher level of safety for you and your vehicle. Our lights meet or exceed the requirements set out in DOT FMVSS-108 and are the ideal, safety-first choice for your vehicle.

What's Included?

  • (1) Round Clearance Marker Light
  • (1) Black Grommet

Packed with features:

  • DOT FMVSS-108 Approved
  • SAE P2 PC Rated
  • TBT Function
  • IP67 Waterproof (Submersible)
  • Built-In Bullet Connector
  • Grommet Mount installation

Basic

MPN:
SIL1013-AM

Warranty & Certification

IP Rating:
IP67
Warranty:
1 Year

Lighting

LED Type:
3528 SMD
Light Color:
Amber
LED Wattage:
1.50
Number of LEDs:
1.00

Hardware & Install

Connector Type:
Bullet Terminal
Lens Cover Color:
Amber
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Flush-Mount
Mounting Hardware:
Grommet
Wire Length (In):
5.50
Housing Material:
Polycarbonate (PC)
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
1.00
Width (In):
1.00
Height (In):
0.63

Electrical

Amperage:
0.12
Operating Voltage:
12V DC
Power Output (Watt):
1.44

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.
