SoundAlert SASN01 Rev.1 100W Police Siren Amplifier

Product Code: PSZAUDSRN002
by LAMPHUS

In stock

Ships Monday, April 3 if ordered in the next 2 days, 14 hours and 5 minutes! Please contact us for ETA

  • Two 16A On/Off Switches
  • Steering Wheel Triggered Air Horn
  • 100 Watt Amplifier
  • Six Siren Tone Options + Radio Broadcast
Read More

2 Year Warranty

Details

Power the Things You Need

The LAMPHUS 100 watt SoundAlert controller is a compact and flexible unit designed for those who need a single, centralized solution for all of their audio and lighting management. Equipped with two additional 16 amp switches, this adaptable unit gives you the ability to operate your sirens along with a wide range of warning lights and accessories without the need for a second switch box.

Simple Layout

The powerful SoundAlert siren system expertly combines a highly functional, feature-rich design with a simple and intuitive layout. Two switches and a dial are all that you need to control the radio rebroadcast, horn override, PA, four different siren tones, and the front-mounted microphone. The straightforward layout makes this unit incredibly easy to use, even if you install it in a concealed location.

Built-In Reliability

The SoundAlert emergency warning system distinguishes itself from the competition by extending its user-focused architecture beyond just basic features and functions. With two pre-wired, color-coded harnesses, an easy to use bail strap, and the included microphone clip, this unit proves its worth right from day one. And, thanks to the durable construction and heavy-duty switches, it will continue to impress you until the last day that you need it.

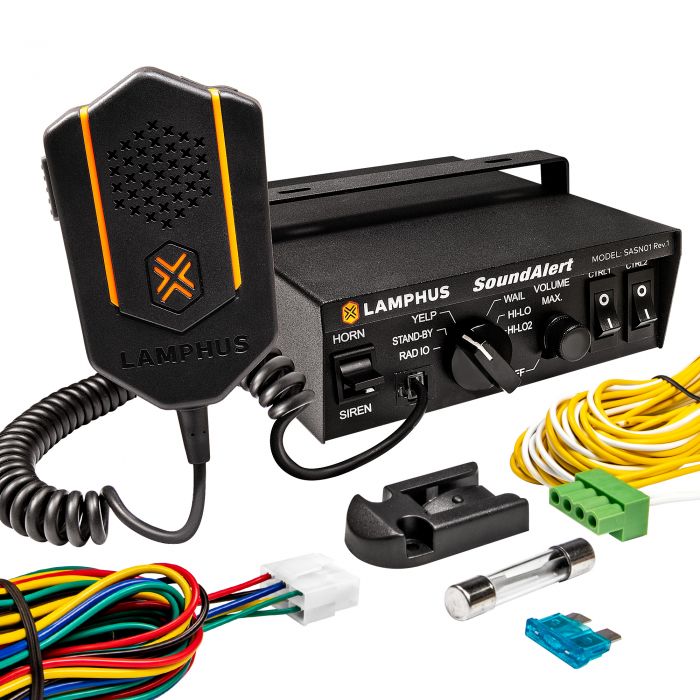

What's Included?

  • (1) 100W Mechanical Siren
  • (1) U-Shape Mounting Bracket
  • (1) Detachable Microphone
  • (1) Microphone Clip, 15A Blade Fuse, 20A Fuse, and Fasteners
  • (1) 6-Pin Wiring Harness
  • (1) 4-Pin Wiring Harness
  • (1) Instruction Manual

Packed with features:

  • Two 16A On/Off Switches
  • Steering Wheel Triggered Air Horn
  • 100 Watt Amplifier
  • Six Siren Tone Options + Radio Broadcast

Basic

Brand:
LAMPHUS
Model Name:
SoundAlert
MPN:
SASN01-Rev.1

Warranty & Certification

IP Rating:
IP53
Warranty:
2 Year

Hardware & Install

Connector Type:
Pigtail
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
96.00
Operating Temperature:
-20°C~+70°C
Is Waterproof?:
No

Package & Dimension

Length (In):
6.13
Width (In):
7.63
Height (In):
2.38

Electrical

Amperage:
5.80
Operating Voltage:
12V DC
Power Output (Watt):
69.60

Sound

Resistance Rating (Ohm):
8.00
Sound Frequency Range (Hz):
400-4000

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.

File Description

PIM-00000157-V002.pdf
