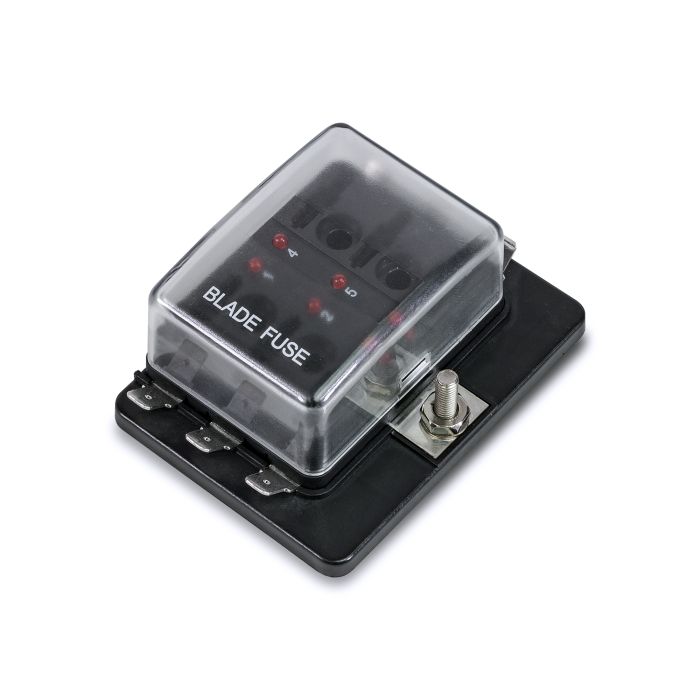

6-Way 100A Fuse Box

Product Code: PSZACCEPS051H

Free Standard Shipping

In stock

Ships tomorrow if ordered in the next 8 hours and 47 minutes! Please contact us for ETA

  • Blown Fuse LED Indicator
  • 6 Fused Circuits w/ 30A Max
  • Total Panel Max 100A
  • Clip Lock Protective Cover
Read More

Free Shipping

1 Year Warranty

Details

This 6 way ATC/ATO blade fuse holder box is compact, yet rugged in construction. LED illuminated, the red LED indicator light allows you to quickly diagnose which of the fuse has “popped”. This fuse panel has a #10-32 stud for power feed, .250” male quick disconnect terminals, can take an input voltage of 10 – 32 V DC, can handle a maximum of 30 Amp per circuit with a maximum of 100 Amp per panel, and has a cover for additional protection.

What's Included?

  • (1) Fuse Box
  • (1) Instruction Manual

Packed with features:

  • Blown Fuse LED Indicator
  • 6 Fused Circuits w/ 30A Max
  • Total Panel Max 100A
  • Clip Lock Protective Cover

Basic

MPN:
EPS051H

Warranty & Certification

IP Rating:
IP00
Warranty:
1 Year

Hardware & Install

Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Operating Temperature:
-25°C~+85°C
Rec. Wire Size:
#10 - 16 AWG
Is Waterproof?:
No

Package & Dimension

Length (In):
1.50
Width (In):
3.38
Height (In):
2.50

Mechanical

Fuse Type:
Standard (ATC/ATO)
Terminal Material:
Tinned Copper
Cover Material:
PC
Number of Positive Circuits:
6.00
Positive Bus Size:
M5 x 0.8P
Positive Terminal Type:
Quick Disconnect
Positive Terminal Size:
.250"
Number of Negative Terminals:
0.00
Has Cover?:
Yes
Has Indicator Light?:
Yes

Electrical

Max DC Voltage Rating:
32V DC
Max DC Amperage Rating:
30.00
Max DC Amperage Rating Per Circuit:
100.00
Has Negative Bus?:
No
