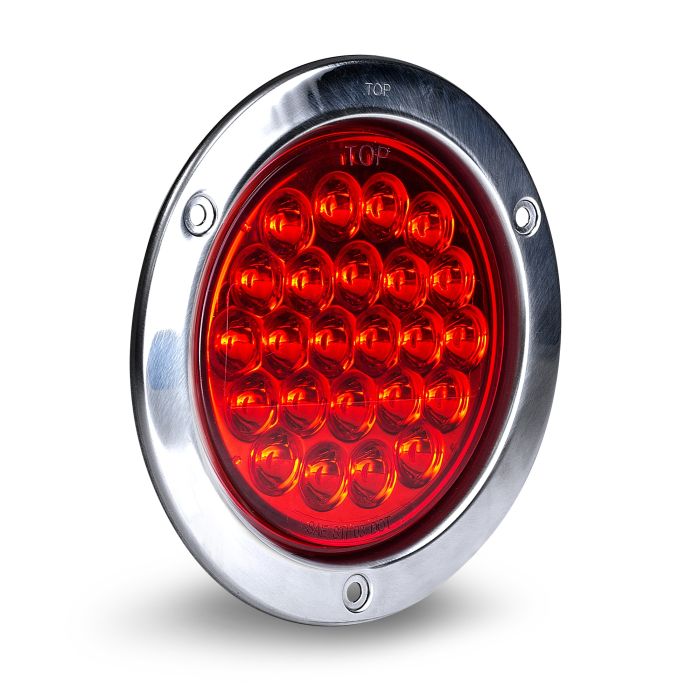

4-Inch Round Surface-Mount Red 24-LED Tail Light - DOT FMVSS 108 SAE S2TSI6P2

Product Code: LEDTBL4036-RD

In stock

Ships tomorrow if ordered in the next 13 hours and 2 minutes! Please contact us for ETA

  • SAE and DOT FMVSS-108 Approved
  • Industry Standard Size
  • IP67 Waterproof (Submersible)
  • Stainless Steel Bezel & Connector Included
  • Parking/Turn/Brake Functions
Read More

1 Year Warranty

Details

No Wasted Time

When you're deciding if you should upgrade to LEDs, one major consideration is "time invested vs reward." Let's make it easy for you. Our lights are the industry standard 4" lights so no modification is needed to install them. The included bezel quickly locks your lights in place and the lights are direct, wire for wire, replacement for your dual filament stop/tail turn/parking lights. It doesn't get easier than this.

Standard Size, Non-Standard Abilities

Do these features make the lights worth the small investment of time? Absolutely! 24 super-bright red LEDs behind a diffused polycarbonate lens blow away standard bulbs and make you more visible and safe at night, in fog, and in the rain. And speaking of rain, our lights are IP67 submersible waterproof rated so you don't have to worry about the weather or the lake. Can your current tail lights do all this?

Yes, They Will Work for You

Whether you're upgrading your tractor or trailer, these lights are the ideal choice. Even if you're working in a tight space, like the back of a Wrangler, our 90° connector has you covered. And since our lights are SAE and DOT FMVSS-108 certified, you can be sure that they are a perfect fit and completely legal.


What's Included?

  • 3-Pin Connector
  • 4" Round Tail Light
  • Stainless Steel Bezel and Screws

Packed with features:

  • SAE and DOT FMVSS-108 Approved
  • Industry Standard Size
  • IP67 Waterproof (Submersible)
  • Stainless Steel Bezel & Connector Included
  • Parking/Turn/Brake Functions

Basic

Fitment Group:
4" Round
Model Name:
Does Not Apply
MPN:
LEDTBL4036-RD

Warranty & Certification

Certifications:
SAE;DOT
Certification Detail:
SAE STI DOT FMVSS-108
IP Rating:
IP67
Warranty:
1 Year

Lighting

LED Manufacturer:
Does Not Apply
LED Type:
Superflux Piranha
Light Color:
Red
LED Wattage:
3.36
Number of LEDs:
24.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Red
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Flush-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
12.00
Housing Material:
Polycarbonate (PC)
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
5.63
Width (In):
2.00
Height (In):
5.63

Electrical

Amperage:
0.33
Operating Voltage:
8-16V DC
Power Output (Watt):
4.01
