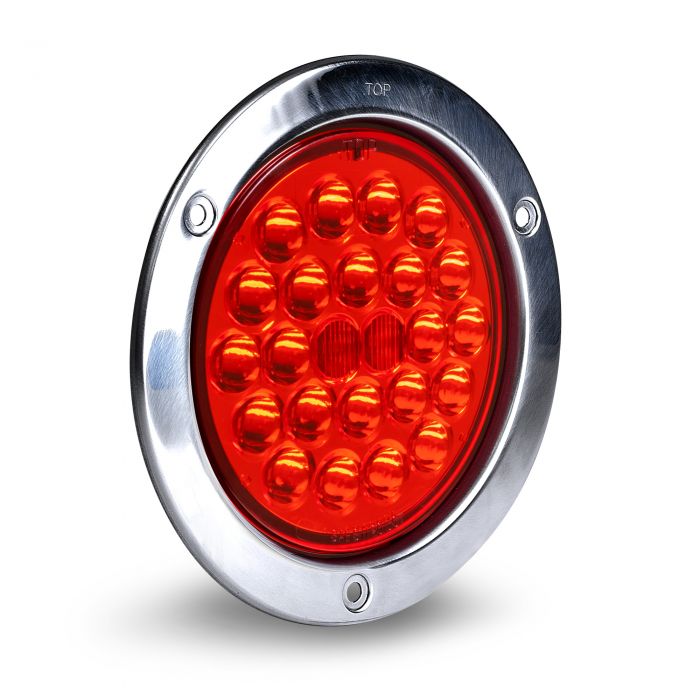

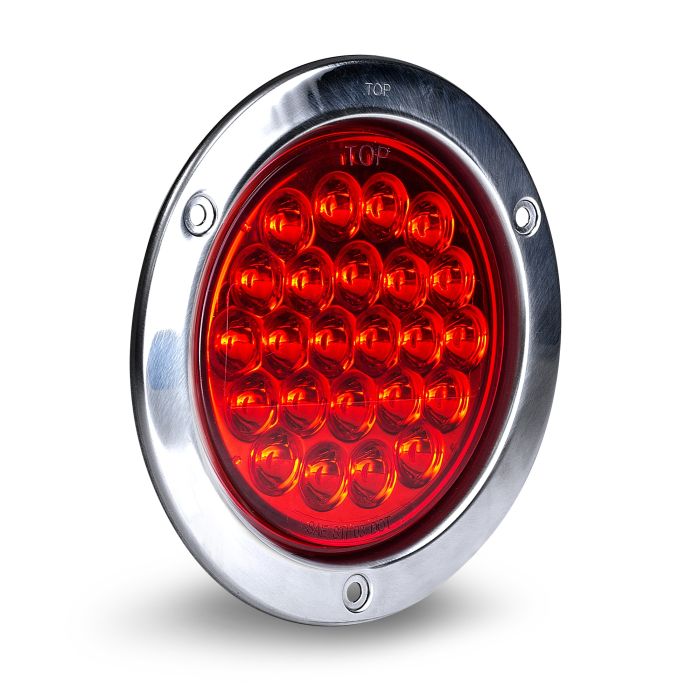

4-Inch Round Surface-Mount 24-LED Tail Light - Red

Product Code: CAZLEDTBL4035-RD

Free Standard Shipping

In stock

Ships tomorrow if ordered in the next 23 hours and 2 minutes! please contact us for ETA

  • SAE and DOT FMVSS-108 Certified
  • Industry Standard Size
  • 24 Red LEDs with Red Lens
  • Submersible Waterproof Rating
  • Stainless-steel Bezel and Connector Included
  • Parking/Turn/Brake Functions
  • 2-Year Warranty
Read More

Free Shipping

1 Year Warranty

Details

No Wasted Time

When you’re deciding if you should upgrade to LEDs, one major consideration is “time invested vs reward.” Let’s make it easy for you. Our lights are the industry standard 4” lights so no modification is needed to install them. The included bezel quickly locks your lights in place and the lights are direct, wire for wire, replacement for your dual filament stop/tail turn/parking lights. It doesn’t get easier than this.

Standard Size, Non-Standard Abilities

Do these features make the lights worth the small investment of time? Absolutely! 24 super-bright red LEDs behind a diffused polycarbonate lens blow away standard bulbs and make you more visible and safe at night, in fog, and in the rain. And speaking of rain, our lights are IP67 submersible waterproof rated so you don’t have to worry about the weather or the lake. Can your current tail lights do all this?

Yes, They Will Work for You

Whether you're upgrading your tractor or trailer, these lights are the ideal choice. Even if you’re working in a tight space, like the back of a Wrangler, our 90° connector has you covered. And since our lights are SAE and DOT FMVSS-108 certified, you can be sure that they are a perfect fit and completely legal.


What's Included?

  • (1) 4" Round Tail Light
  • (1) Stainless Steel Bezel and Screws
  • (1) 3-Pin Connector
  • (1) Instruction Manual

Packed with features:

  • SAE and DOT FMVSS-108 Certified
  • Industry Standard Size
  • 24 Red LEDs with Red Lens
  • Submersible Waterproof Rating
  • Stainless-steel Bezel and Connector Included
  • Parking/Turn/Brake Functions
  • 2-Year Warranty

Basic

Fitment Group:
4" Round
MPN:
TBL4035-RD

Warranty & Certification

IP Rating:
IP67
Warranty:
1 Year

Lighting

LED Type:
Superflux Piranha
Light Color:
Red
LED Wattage:
3.36
Number of LEDs:
24.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Red
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Flush-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
12.00
Housing Material:
Polycarbonate (PC)
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
5.63
Width (In):
2.00
Height (In):
5.63

Electrical

Amperage:
0.26
Operating Voltage:
8-16V DC
Power Output (Watt):
3.06

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.

File Description

PIM-00000059-V003.pdf
