36-60-Inch LED Marine Navigation Anchor All-Round Boat Light - USCG ABYC A-16 3NM

Product Code: CAZLEDSIL0014

In stock

Ships tomorrow if ordered in the next 6 hours and 42 minutes! Please contact us for ETA

  • 34”-60” Height Adjustment
  • All-Round Light For Boats up to 39.4’ (12m)
  • Anchor Light for boats up to 164’ (50m)
  • IP 66 Rated
  • USCG Approved
  • Meets ABYC A-16
  • Visible For 3NM
  • 9-30V DC Operational Voltage
Read More

1 Year Warranty

Details

Protect Your Equipment

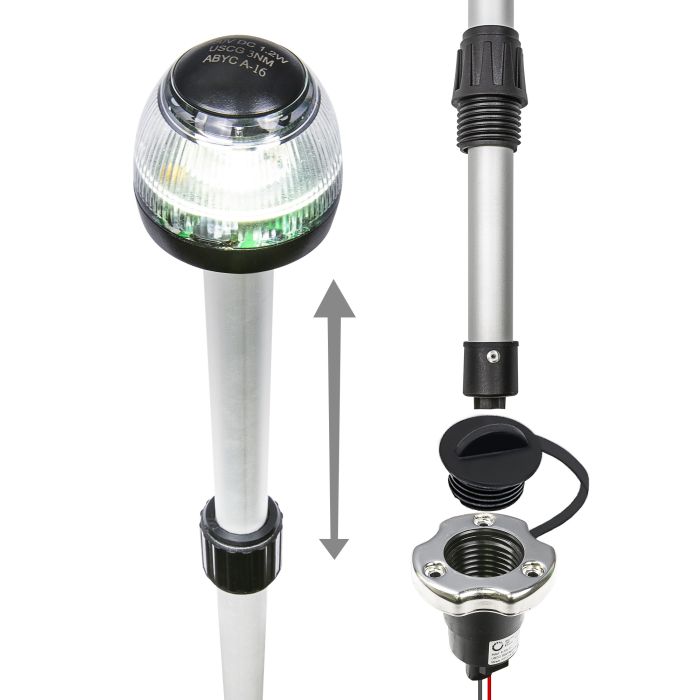

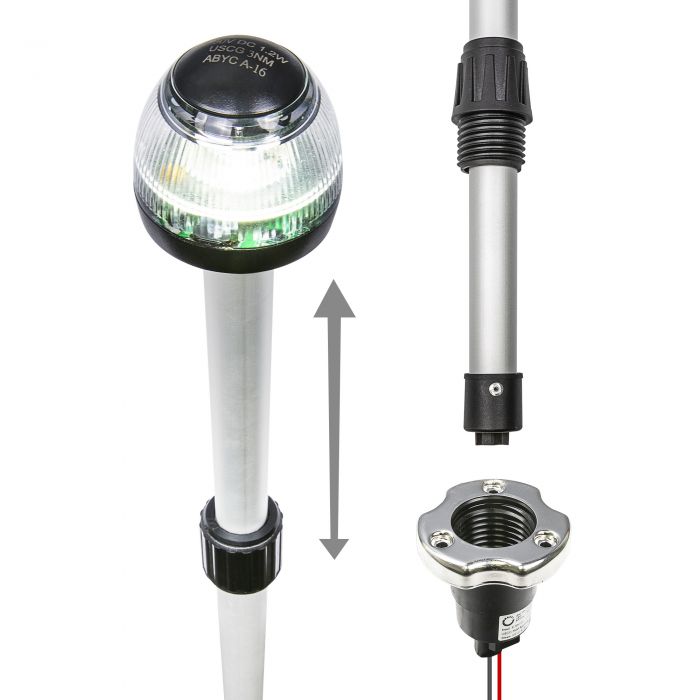

Trailering and storage are unavoidable parts of boat ownership; damage and theft aren’t. Equipped with a quick-release base, these lights can be easily removed to avoid road debris and/or sticky fingers either during the transit to a lake or simply parked on a driveway. Moreover, a long-lasting LED beacon with IP66 waterproof rating assembled at the tip of a sturdy, corrosion-resistant aluminum pole, these lights won’t give up even when the weather gets tough.

Extendable

Blinding glare from your navigation lights can interfere with your vision and compromise your safety. Proper placement and height are essential. But trying to make a “one size fits all” light work for your boat may not always be the most convenient option. Our extendable all-round lights adjust from 34”-60” to fit your boat, your height and your idea of a good day on the water.

Your Batteries Will Thank You

Reducing your total amp draw is an essential consideration for any boat owner. Drawing only 1 watt of power, these LED lights are a great way to cut out unnecessary power drains. Our lights are also designed to handle a wider range of input voltages than other lights on the market, so whether you're running a 12 or 24-volt system they will fit your setup.

What's Included?

  • (1) Pack of Screws
  • (1) All-Round Lamp
  • (1) Mounting Base + Aluminum Bezel Kit
  • (1) Instruction Manual

Packed with features:

  • 34”-60” Height Adjustment
  • All-Round Light For Boats up to 39.4’ (12m)
  • Anchor Light for boats up to 164’ (50m)
  • IP 66 Rated
  • USCG Approved
  • Meets ABYC A-16
  • Visible For 3NM
  • 9-30V DC Operational Voltage

Basic

MPN:
SIL0014

Warranty & Certification

IP Rating:
IP66
Warranty:
1 Year

Lighting

LED Type:
1W
Light Color:
Cold White
LED Wattage:
1.00
Number of LEDs:
1.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Clear
Lens Cover Material:
Polycarbonate (PC)
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
5.75
Housing Material:
Polycarbonate (PC)
Operating Temperature:
-20°C~+60°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
2.50
Width (In):
2.50
Height (In):
36.88

Electrical

Amperage:
0.10
Operating Voltage:
9-30V DC
Power Output (Watt):
1.20

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.

File Description

PIM-00000180-V002.pdf
