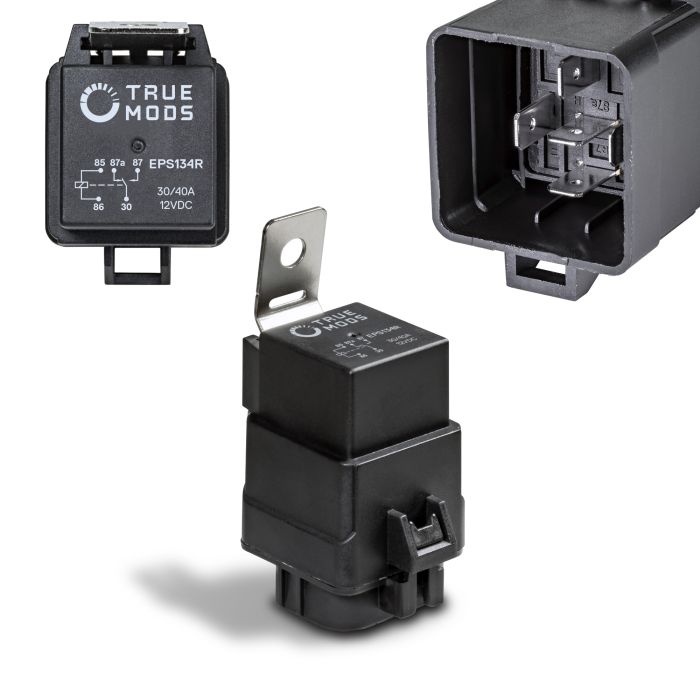

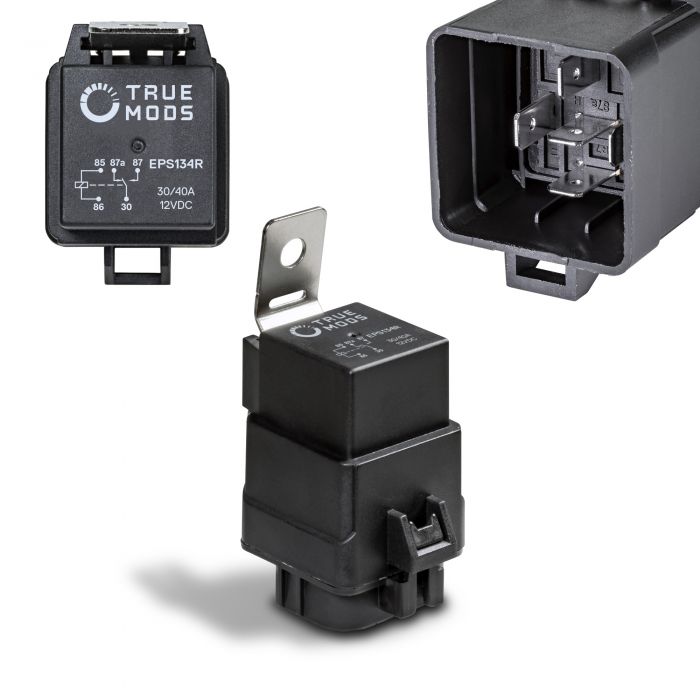

14V DC 40/30A SPDT 5-Pin Waterproof Relay Replacement for EPS177R/EPS178R
Product Code: PSZACCEPS134R
Price: $5.50
Out of stock
Ships tomorrow if ordered in the next 20 hours and 57 minutes! Please contact us for ETA
Details
Lights not working because of a burned out waterproof relay? Replace your relay and get back on the road with this replacement 5-pin waterproof relay.
What's Included?
- (1) 5-Pin 40/30A Waterproof Relay
Basic
MPN:
EPS134R
Warranty & Certification
Warranty:
1 Year
Hardware & Install
Mounting Type:
Bracket-Mount
Mounting Hardware:
Fasteners
Housing Material:
Plastic
Operating Temperature:
-40°C ~ +85°C
Is Waterproof?:
No
Package & Dimension
Length (In):
1.83
Width (In):
1.50
Height (In):
2.00
Mechanical
Terminal Material:
Silver Plated Copper
Number of Prongs:
4.00
Pole Type:
Single
Throw Type:
Double
Release Time:
5msec max
Terminal Type:
.250" Quick Disconnect
Electrical
Max Switching DC Voltage:
12V DC
Max Switching Power:
480.00
Dielectric Strength:
AC 1500V 1 minute
Trigger Coil Current:
0.15
Coil Resistance:
80.00
Has Flyback Diode?:
No
Has Resistor?:
No
