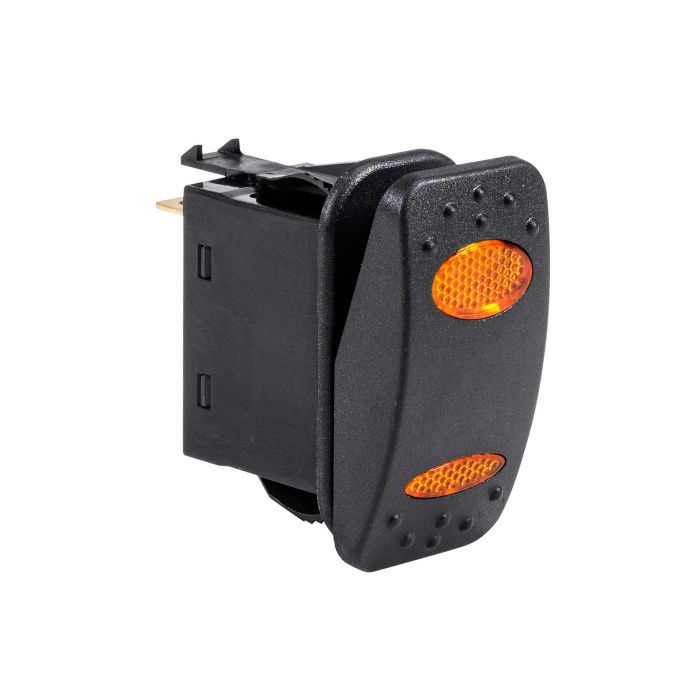

14V DC 20A 4-Pin LED SPDT ON-(ON) Rocker Switch - Amber
Product Code: PSZACCEPS010S-AM
As low as $6.25
In stock
Ships tomorrow if ordered in the next 14 hours and 27 minutes! Please contact us for ETA
Only %1 left
- SPDT ON-(ON) Switch
- Industry Standard Fitment
- Built-In LED Indicator
- IP56 Dust/Waterproof Rating
- .250" Male Contact Terminals
- Maximum of 21 Amp @ 14V DC
Details
This PSZACCEPS010S 4 pin SPDT LED illuminated rocker/momentary switch is a 2 position rocker switch that allows one to supply power to two separate loads without engaging an off position. The first position is a steady on while the second position is a momentary on. This on-(on) SPDT rocker switch is designed to be heavy-duty and can handle a maximum load of 21 Amps through 14 volts DC power. The switch body is at 1-7/16" by 13/16" which allows this 2 position rock switch to be installed into existing switch slots on most modern vehicles. Rated at IP56, this 2 position on-(on) SPDT LED illuminated rocker switch is dustproof, capable of handling strong water jets, and can be used inside and outside of the vehicle.
What's Included?
- (1) Switch Button
- (1) Switch Base
Packed with features:
- SPDT ON-(ON) Switch
- Industry Standard Fitment
- Built-In LED Indicator
- IP56 Dust/Waterproof Rating
- .250" Male Contact Terminals
- Maximum of 21 Amp @ 14V DC
Basic
Model Name:
Mix-N-Match
MPN:
EPS010S-RD
Warranty & Certification
IP Rating:
IP56
Warranty:
1 Year
Lighting
Light Color:
Cold White
Hardware & Install
Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
No
Package & Dimension
Length (In):
1.00
Width (In):
2.00
Height (In):
2.00
Mechanical
Number of Prongs:
1.00
Pole Type:
Single
Throw Type:
Double
Terminal Type:
.250" Quick Disconnect
Switch Function:
ON-(ON)
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
Yes
Has Indicator Light?:
No
Electrical
Max Switching DC Voltage:
14V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
20.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
