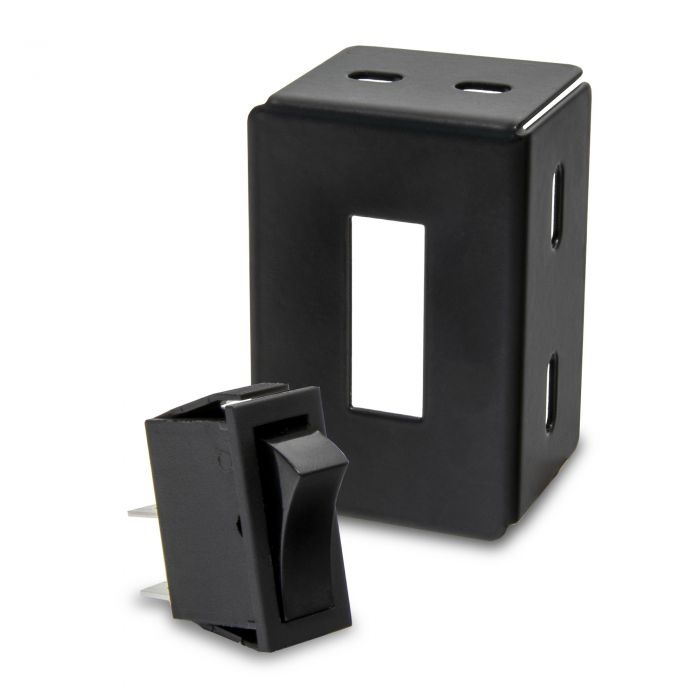

4A 12V DC 250VAC (ON)-OFF Momentary Switch Kit
Product Code: EPSSWH0083
Price: $1.99
In stock
Ships Monday, April 29 if ordered in the next 2 days, 23 hours and 27 minutes! Please contact us for ETA
- (ON)-OFF Position Switch
- Rated 4A at 12V DC or 250VAC
- Terminal Connectors Included
- Mounting Bracket Included
Details
Flexible Power
Rated at 16(4)A 250VAC, this momentary switch is compatible with any electrical applications rated under 4A at 12V DC and/or 250V AC. Ths momentary switch, build in (ON)-OFF construction, allows for the power control at your fingertip.
Complete Kit
You want to get the job done quickly and take your gear out, and we understand. This momentary switch kit comes equipped with the essential tools you need to complete the setup. Utilize the included terminals, mounting bracket and the optional mounting options (screws or double-sided tape) to quickly put the kit into use!
What's Included?
- 10A SPST (ON)-OFF Switch
- 3M Double-Sided Sticker
- 2 Blue Wire Connector
- 4 Sheet Metal Screw - Philips Truss - Stainless Steel - #18 1/2"
- Switch Mounting Braket
Packed with features:
- (ON)-OFF Position Switch
- Rated 4A at 12V DC or 250VAC
- Terminal Connectors Included
- Mounting Bracket Included
Basic
Model Name:
Does Not Apply
MPN:
EPSSWH0083
Warranty & Certification
Warranty:
1 Year
Hardware & Install
Mounting Type:
Bracket-Mount
Housing Material:
ABS
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
No
Package & Dimension
Length (In):
3.00
Width (In):
2.75
Height (In):
1.25
Mechanical
Terminal Material:
Silver Plated Copper
Number of Prongs:
1.00
Pole Type:
Single
Throw Type:
Single
Terminal Type:
.250" Quick Disconnect
Switch Function:
Momentary ON / OFF
Actuator Type:
Rocker
Actuator Material:
Nylon
Has Indicator Light?:
No
Electrical
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
16.00
Max Switching DC Amperage:
0.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
