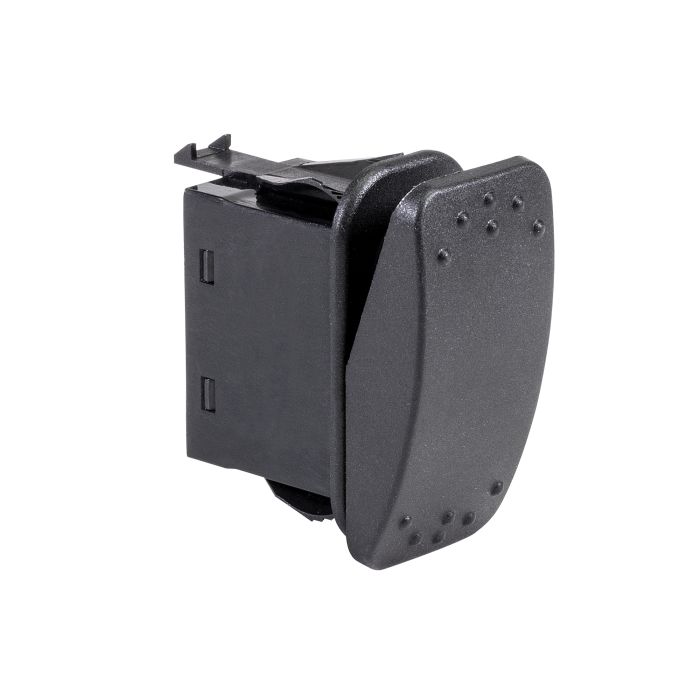

14V DC 20A 2-Pin SPST (ON)-OFF Momentary Rocker Switch

Product Code: PSZACCEPS008S

Free Standard Shipping

In stock

Ships tomorrow if ordered in the next 17 hours and 27 minutes! Please contact us for ETA

  • SPST OFF-(ON) Switch
  • Industry Standard Fitment
  • IP56 Dust/Waterproof Rating
  • .250" Male Contact Terminals
  • Maximum of 21 Amp @ 14V DC
Read More

Free Shipping

1 Year Warranty

Details

This PSZACCEPS008S 3-Pin SPST momentary rocker switch is a heavy-duty SPST switch capable of handling a maximum load of 21 Amps at 14 volts DC. Measured at 1-7/16" by 13/16", this momentary switch is designed to fit most standard modern vehicle switch slots with no modification necessary. Capable of supplying power to most vehicle apparatuses, the PSZACCEPS008S momentary rocker switch has an IP56 rating which means it is sealed from dust, safe against powerful water jets, and suitable for both interior and exterior applications.

What's Included?

  • (1) 20A SPST Switch

Packed with features:

  • SPST OFF-(ON) Switch
  • Industry Standard Fitment
  • IP56 Dust/Waterproof Rating
  • .250" Male Contact Terminals
  • Maximum of 21 Amp @ 14V DC

Basic

Model Name:
Mix-N-Match
MPN:
EPS008S

Warranty & Certification

IP Rating:
IP30
Warranty:
1 Year

Hardware & Install

Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
No

Package & Dimension

Length (In):
1.00
Width (In):
2.00
Height (In):
2.00

Mechanical

Terminal Material:
Silver Plated Copper
Number of Prongs:
2.00
Pole Type:
Single
Throw Type:
Single
Terminal Type:
.250" Quick Disconnect
Switch Function:
Momentary ON / OFF
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
No
Has Indicator Light?:
No

Electrical

Max Switching DC Voltage:
14V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
20.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
