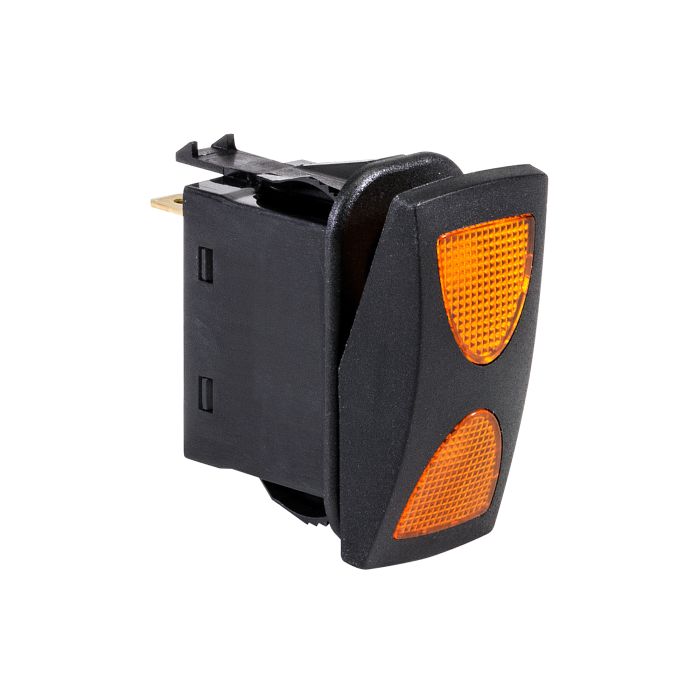

14V DC 20A 4-Pin LED SPDT ON-OFF-ON Rocker Switch

Product Code: PSZACCEPS009S-XX

In stock

Ships tomorrow if ordered in the next 10 hours and 56 minutes! Please contact us for ETA

Only %1 left
  • SPDT ON-OFF-ON Switch
  • Industry Standard Fitment
  • Built-In LED Indicator
  • IP56 Dust/Waterproof Rating
  • .250" Male Contact Terminals
  • Maximum of 21 Amp @ 14V DC
Read More

1 Year Warranty

Details

The PSZACCEPS009S 4-pin SPDT LED illuminated rocker switch has an IP56 rating which makes this heavy duty rocker switch dustproof and protected against strong water jets. This three position ON OFF ON switch allows one to control multiple apparatuses independently from each other through a single rocker switch. Capable of handling 21 Amps of load from a 14 volts DC source, this on off on SPDT rocker switch has a switch body sized at 1-7/16" by 13/16", making it compatible with factory switch slots of most modern vehicles.

What's Included?

  • (1) Switch Button
  • (1) Switch Base

Packed with features:

  • SPDT ON-OFF-ON Switch
  • Industry Standard Fitment
  • Built-In LED Indicator
  • IP56 Dust/Waterproof Rating
  • .250" Male Contact Terminals
  • Maximum of 21 Amp @ 14V DC

Basic

Model Name:
Mix-N-Match
MPN:
EPS009S-RD

Warranty & Certification

IP Rating:
IP56
Warranty:
1 Year

Lighting

Light Color:
Cold White

Hardware & Install

Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
No

Package & Dimension

Length (In):
1.00
Width (In):
2.00
Height (In):
2.00

Mechanical

Number of Prongs:
4.00
Pole Type:
Single
Throw Type:
Double
Terminal Type:
.250" Quick Disconnect
Switch Function:
ON-OFF-ON
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
Yes
Has Indicator Light?:
Yes

Electrical

Max Switching DC Voltage:
14V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
20.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC

Prop 65 Warning! Please visit https://truemods.com/california-prop65 for more information.
