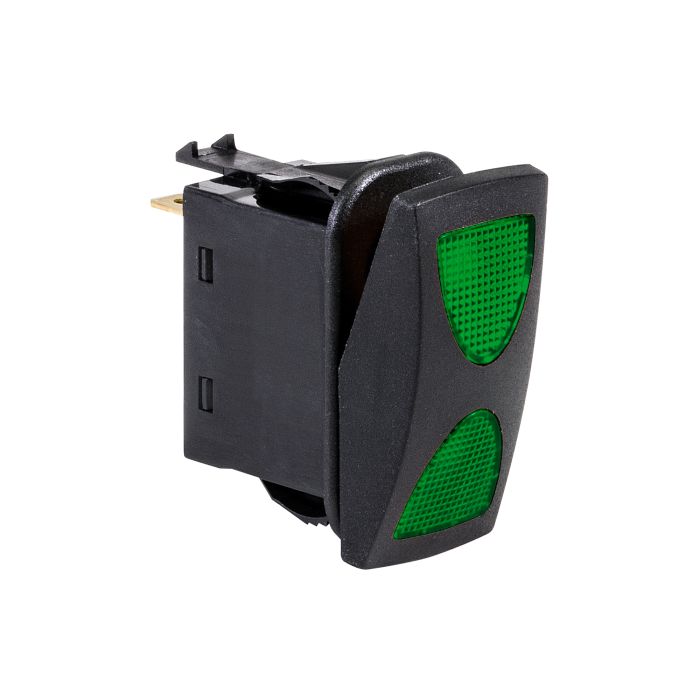

14V DC 20A 4-Pin LED SPDT ON-OFF-ON Rocker Switch - Green

Product Code: PSZACCEPS009S-GN

In stock

Ships tomorrow if ordered in the next 23 hours and 36 minutes! Please contact us for ETA

  • SPDT ON-OFF-ON Switch
  • Industry Standard Fitment
  • Built-in LED Indicator
  • IP56 Dust/Waterproof Rating
  • .250" male contact terminals
  • Maximum of 21 Amp @ 14V DC
Read More

1 Year Warranty

Details

This PSZACCEPS009S 4-pin SPDT LED illuminated rocker switch has an IP56 rating which makes this heavy-duty rocker switch dustproof and protected against strong water jets. This three-position ON OFF ON switch allows one to control multiple apparatuses independently from each other through a single rocker switch. Capable of handling 21 Amps of load from a 14 volts DC source, this on-off on SPDT rocker switch has a switch body sized at 1-7/16" by 13/16", making it compatible with factory switch slots of most modern vehicles.

What's Included?

  • (1) Switch Button
  • (1) Switch Base

Packed with features:

  • SPDT ON-OFF-ON Switch
  • Industry Standard Fitment
  • Built-in LED Indicator
  • IP56 Dust/Waterproof Rating
  • .250" male contact terminals
  • Maximum of 21 Amp @ 14V DC

Basic

MPN:
EPS009S-RD

Warranty & Certification

IP Rating:
IP56
Warranty:
1 Year

Lighting

Light Color:
Cold White

Hardware & Install

Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
No

Package & Dimension

Length (In):
1.00
Width (In):
2.00
Height (In):
2.00

Mechanical

Number of Prongs:
4.00
Pole Type:
Single
Throw Type:
Double
Terminal Type:
.250" Quick Disconnect
Switch Function:
ON-OFF-ON
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
Yes
Has Indicator Light?:
Yes

Electrical

Max Switching DC Voltage:
14V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
20.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
