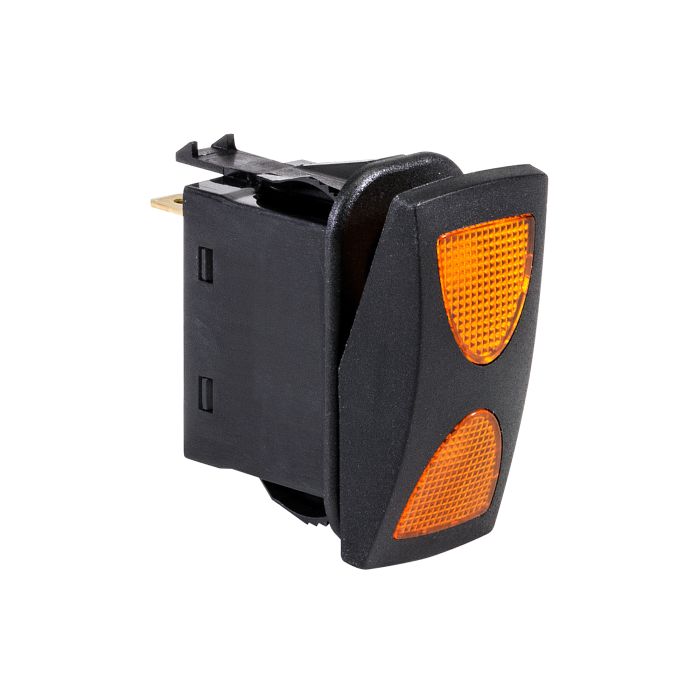

14V DC 20A 4-Pin LED SPDT ON-OFF-ON Rocker Switch - Amber
Product Code: PSZACCEPS009S-AM
As low as $6.25
In stock
Ships tomorrow if ordered in the next 9 hours and 38 minutes! Please contact us for ETA
Only %1 left
- SPDT ON-OFF-ON Switch
- Industry Standard Fitment
- Built-In LED Indicator
- IP56 Dust/Waterproof Rating
- .250" Male Contact Terminals
- Maximum of 21 Amp @ 14V DC
Details
This PSZACCEPS009S 4-pin SPDT LED illuminated rocker switch has an IP56 rating which makes this heavy-duty rocker switch dustproof and protected against strong water jets. This three-position ON OFF ON switch allows one to control multiple apparatuses independently from each other through a single rocker switch. Capable of handling 21 Amps of load from a 14 volts DC source, this on-off on SPDT rocker switch has a switch body sized at 1-7/16" by 13/16", making it compatible with factory switch slots of most modern vehicles.
What's Included?
- (1) Switch Button
- (1) Switch Base
Packed with features:
- SPDT ON-OFF-ON Switch
- Industry Standard Fitment
- Built-In LED Indicator
- IP56 Dust/Waterproof Rating
- .250" Male Contact Terminals
- Maximum of 21 Amp @ 14V DC
Basic
Model Name:
Mix-N-Match
MPN:
EPS009S-RD
Warranty & Certification
IP Rating:
IP56
Warranty:
1 Year
Lighting
Light Color:
Cold White
Hardware & Install
Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
No
Package & Dimension
Length (In):
1.00
Width (In):
2.00
Height (In):
2.00
Mechanical
Number of Prongs:
4.00
Pole Type:
Single
Throw Type:
Double
Terminal Type:
.250" Quick Disconnect
Switch Function:
ON-OFF-ON
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
Yes
Has Indicator Light?:
Yes
Electrical
Max Switching DC Voltage:
14V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
20.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
