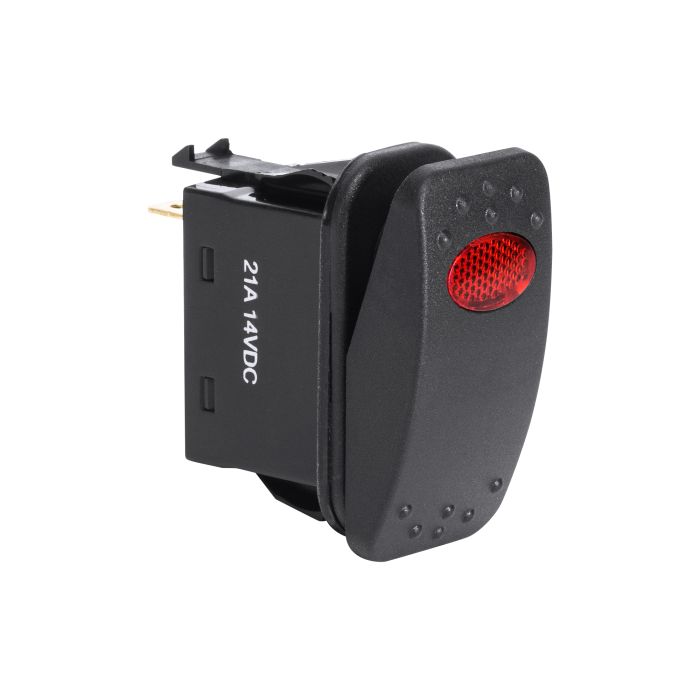

14V DC 30A 3-Pin SPST LED ON/OFF Rocker Switch - Red
Product Code: PSZACCEPS006S-RD
As low as $5.00
In stock
Ships tomorrow if ordered in the next 8 hours and 47 minutes! Please contact us for ETA
Only %1 left
- SPST ON/OFF Switch
- Industry Standard Fitment
- Built-In LED Indicator
- IP56 Dust/Waterproof Rating
- .250" Male Contact Terminals
- Maximum of 21 Amp @ 14V DC
Details
The PSZACCEPS006S 3-Pin SPST LED illuminated rocker switch fits into a standard modern vehicle rocker switch hole with little or no modification required; the mounting measurements are 1-7/16” by 13/16”. This heavy duty rocker switch is rated at 20 Amps and is able to work with input voltage of up to 14 Volt DC, it’s also weatherproof at IP56 to be dust protected and safe against powerful water jets. This PSZACCEPS006S switch can be used to power up most LED light bars or vehicle apparatus drawing less than the maximum rating stated.
What's Included?
- (1) Switch Button
- (1) Switch Base
Packed with features:
- SPST ON/OFF Switch
- Industry Standard Fitment
- Built-In LED Indicator
- IP56 Dust/Waterproof Rating
- .250" Male Contact Terminals
- Maximum of 21 Amp @ 14V DC
Basic
Model Name:
Mix-N-Match
MPN:
EPS006S-RD
Warranty & Certification
IP Rating:
IP56
Warranty:
1 Year
Lighting
Light Color:
Cold White
Hardware & Install
Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-40°C~+85°C
Is Waterproof?:
No
Package & Dimension
Length (In):
1.00
Width (In):
1.25
Height (In):
2.00
Mechanical
Number of Prongs:
3.00
Pole Type:
Single
Throw Type:
Single
Terminal Type:
.250" Quick Disconnect
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
Yes
Has Indicator Light?:
Yes
Electrical
Max Switching DC Voltage:
14V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
21.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
