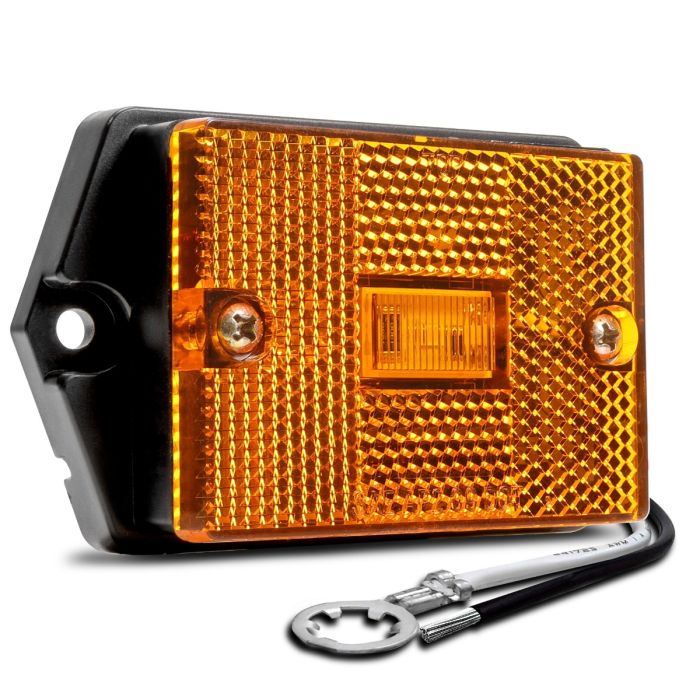

3x2-Inch Surface Mount Amber LED Marker Light - DOT FMVSS 108 - SAE AP2

Product Code: CAZLEDSIL3002-AM

In stock

Ships today if ordered in the next 2 hours and 50 minutes! Please contact us for ETA

Only %1 left
  • DOT FMVSS-108 Approved
  • SAE AP2 Rated
  • IP67 Waterproof (Submersible)
  • Reflector Lens Design
  • Surface Mount w/ Hardware
Read More

1 Year Warranty

Details

WHAT YOUR TRAILER DESERVES

Trailers are how we work and how we play. And for those who haul there are just too many things to do before a long drive to waste time worrying about the trailer's marker lights. But if you're using short-lived incandescent bulbs, you could be making a trip to the parts store to fix your lights before you can hit the road. With a long-lasting set of LED clearance lights, you'll spend less time maintaining and more time doing what you love.

DON'T SETTLE FOR SECOND BEST

Not all clearance marker lights are created equal. Our lights sport an impressive IP67 waterproof rating needed for boat and jet ski trailers, have a notched back for easier wire routing, and come with top marking for easy orientation during installation. But just when you thought it couldn't get any better, these lights also come surface mount ready with hardware. No more needing to fight with the hole saw or scavenge through your bolts bin to get these bad boys on, could it get easier than that?

MORE THAN JUST AN LED LIGHT

More than just practical and long-lasting, our lights are also legal. According to the FMVSS-108, all trailers over 80" wide must use clearance lights and reflective materials to legally operate on the road. Our lights combine the features and benefits of an LED side marker with a highly visible reflective lens so you can quickly and easily satisfy both requirements with one piece of equipment.

What's Included?

  • 3" x 2" Surface-Mount Clearance Marker Light
  • Pack of Mounting Screws

Packed with features:

  • DOT FMVSS-108 Approved
  • SAE AP2 Rated
  • IP67 Waterproof (Submersible)
  • Reflector Lens Design
  • Surface Mount w/ Hardware

Basic

Fitment Group:
3" x 2" Rectangular
Model Name:
Does Not Apply

Warranty & Certification

Certifications:
DOT, SAE
Certification Detail:
SAE AP2 DOT FMVSS 108
IP Rating:
IP67
Warranty:
1 Year

Lighting

LED Manufacturer:
Does Not Apply
LED Type:
3528 SMD
Light Color:
Amber
LED Wattage:
1.00
Number of LEDs:
1.00

Hardware & Install

Connector Type:
Pigtail
Lens Cover Color:
Amber
Lens Cover Material:
Acrylic
Mounting Type:
Surface-Mount
Mounting Hardware:
Fasteners
Wire Length (In):
4.00
Housing Material:
ABS
Operating Temperature:
-30°C~+50°C
Is Waterproof?:
Yes

Package & Dimension

Length (In):
4.00
Width (In):
1.13
Height (In):
2.50

Electrical

Amperage:
0.07
Operating Voltage:
12V DC
Power Output (Watt):
0.84
