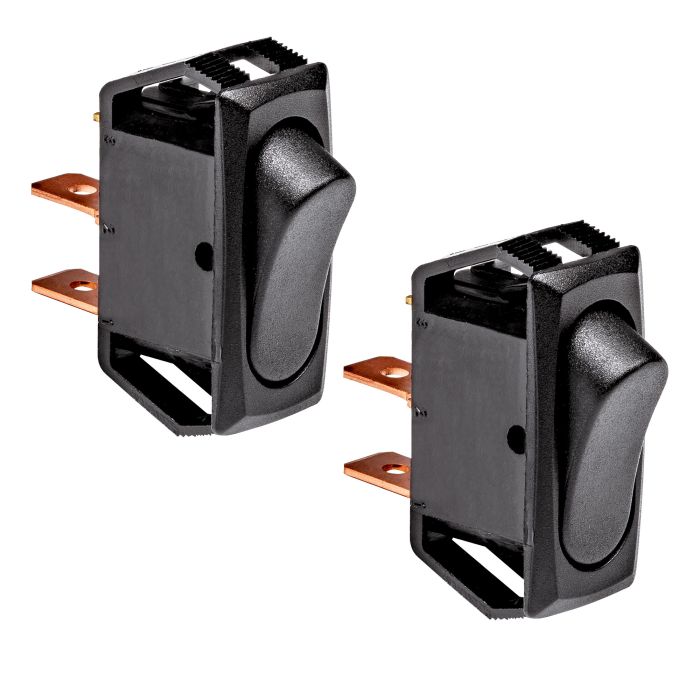

2pc 2-Pin SPST (ON)-OFF Momentary Switch for SWH0081/SWH0082

Product Code: ACCEPSSWH0081A4

In stock

Ships tomorrow if ordered in the next 18 hours and 42 minutes! Please contact us for ETA

  • On/Off Two Terminal Momentary Switch
  • For Use With The SWH0081/SWH0082 Switch Boxes
  • Simple Install
  • Use as a Positive or Negative Trigger
  • 10A Maximum Load
Read More

1 Year Warranty

Details

Keeping It Clean

Adding a strobe light, dash light, or beacon light to your vehicle usually means adding at least one momentary switch to control the flash mode. The problem in that many aftermarket switch boxes don’t come with momentary switches and adding one usually isn’t an option. That’s why we created these replacement momentary switches. Built as a direct fit for your SWH0081/SWH0082 switch box, they allow you to customize your lighting without needing to “customize” your dash.

Making Your Life Easier

The whole point of creating these momentary switches was to make it easier to install your lights. But to truly accomplish that goal we also needed to make it easy to install the switch into your switch box. We wanted to make it so you didn’t have have to cut, drill or rewire anything within the switch box when you changed over to a momentary switch. The result? The easiest install ever, no cutting, no drilling, and no wiring.

Multi-Function

Because this is a simple, two terminal momentary switch, using it for a negative or positive trigger accessory is no problem. And you still don’t have to change any of the wiring within the box. So whether you’re switching between flashing modes or firing up an air horn, this switch has you covered.

What's Included?

  • (2) 2-Pin SPST OFF-(ON) Momentary Switch
  • (1) Instruction Manual

Packed with features:

  • On/Off Two Terminal Momentary Switch
  • For Use With The SWH0081/SWH0082 Switch Boxes
  • Simple Install
  • Use as a Positive or Negative Trigger
  • 10A Maximum Load

Basic

MPN:
SWH0081A4

Warranty & Certification

IP Rating:
IP30
Warranty:
1 Year

Hardware & Install

Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-20°C~+85°C
Is Waterproof?:
No

Package & Dimension

Length (In):
1.13
Width (In):
0.63
Height (In):
1.38

Mechanical

Terminal Material:
Copper
Number of Prongs:
2.00
Pole Type:
Single
Throw Type:
Single
Terminal Type:
.250" Quick Disconnect
Switch Function:
Momentary ON / OFF
Actuator Type:
Rocker
Actuator Material:
Nylon
Has Indicator Light?:
No

Electrical

Max Switching DC Voltage:
14V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
10.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
