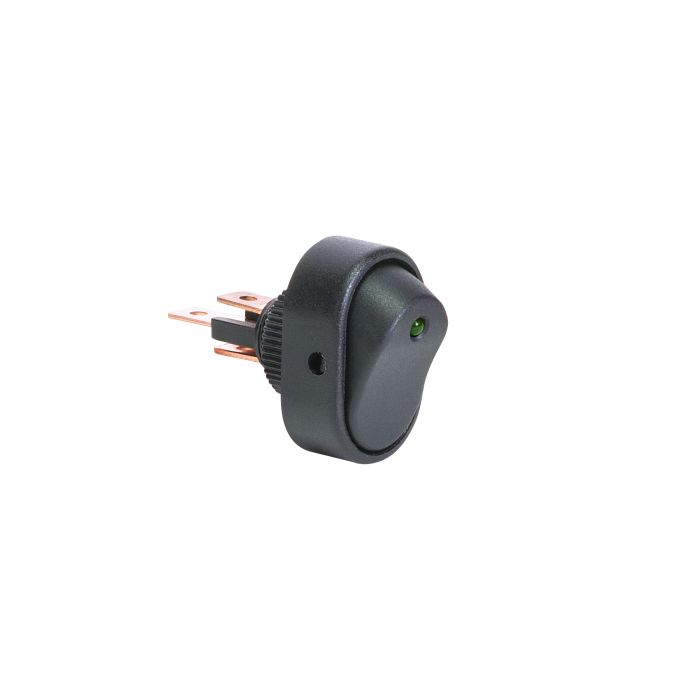

12V DC 30A 3-Pin SPST ON/OFF Rocker Switch - Green

Product Code: PSZACCEPS005S-GN

In stock

Ships tomorrow if ordered in the next 10 hours and 15 minutes! Please contact us for ETA

Only %1 left
  • SPST ON/OFF Switch
  • Super Compact Fitment
  • Built-In LED Indicator
  • .250" Male Contact Terminals
  • Maximum of 30 Amp @ 12V DC
Read More

1 Year Warranty

Details

The PSZACCEPS005S 3-Pin SPST LED illuminated rocker switch is rated at a maximum of 30 Amps at 12 Volt DC; it uses the standard 1/4” male contact terminals to work with popular installation components. This switch only requires a 7/16” hole to be drilled on the mounting surface, making this a much more preferred switch for an easy and clean setup. This PSZACCEPS005S switch would be nice to have to power up most accessories/apparatus rated less than 30 Amps, such as LED off-road light bars, work lights, or any emergency warning vehicle lighting.

What's Included?

  • (1) 30A SPST Switch

Packed with features:

  • SPST ON/OFF Switch
  • Super Compact Fitment
  • Built-In LED Indicator
  • .250" Male Contact Terminals
  • Maximum of 30 Amp @ 12V DC

Basic

Model Name:
Does Not Apply
MPN:
EPS005S-RD

Warranty & Certification

IP Rating:
IP56
Warranty:
1 Year

Lighting

Light Color:
Cold White

Hardware & Install

Mounting Type:
Flush-Mount
Housing Material:
Nylon
Operating Temperature:
-25°C~+85°C
Is Waterproof?:
No

Package & Dimension

Length (In):
0.75
Width (In):
1.25
Height (In):
2.00

Mechanical

Terminal Material:
Copper
Number of Prongs:
3.00
Pole Type:
Single
Throw Type:
Single
Terminal Type:
.250" Quick Disconnect
Actuator Type:
Rocker
Actuator Material:
Nylon
Illuminated?:
Yes
Has Indicator Light?:
Yes

Electrical

Max Switching DC Voltage:
12V DC
Dielectric Strength:
AC 1500V 1 minute
Max Switching AC Amperage:
0.00
Max Switching DC Amperage:
30.00
Contact Resistance:
< 50 mohm
Insulation Resistance:
>100 Mohm @ 500V DC
